(10 points) Consider the following process flow diagram. Tasks A, B and C are such that...

Transcribed Image Text:

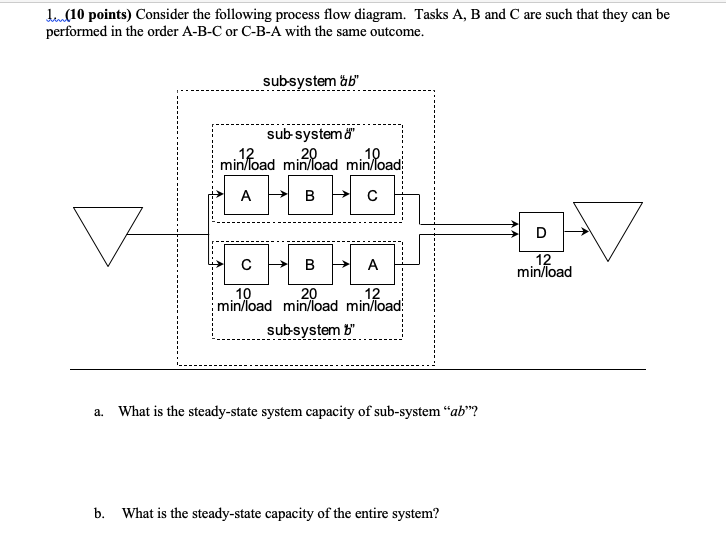

(10 points) Consider the following process flow diagram. Tasks A, B and C are such that they can be performed in the order A-B-C or C-B-A with the same outcome. sub-system ab a. sub-system & 10 min Road minoad min load A B D B A 12 min/load 10 20 12 min/load min/load min/load: sub-system b" What is the steady-state system capacity of sub-system "ab"? b. What is the steady-state capacity of the entire system? (10 points) Consider the following process flow diagram. Tasks A, B and C are such that they can be performed in the order A-B-C or C-B-A with the same outcome. sub-system ab a. sub-system & 10 min Road minoad min load A B D B A 12 min/load 10 20 12 min/load min/load min/load: sub-system b" What is the steady-state system capacity of sub-system "ab"? b. What is the steady-state capacity of the entire system?
