a. There are many inputs into the engineering design process as illustrated by the figure 2.1...
Fantastic news! We've Found the answer you've been seeking!
Question:
Transcribed Image Text:

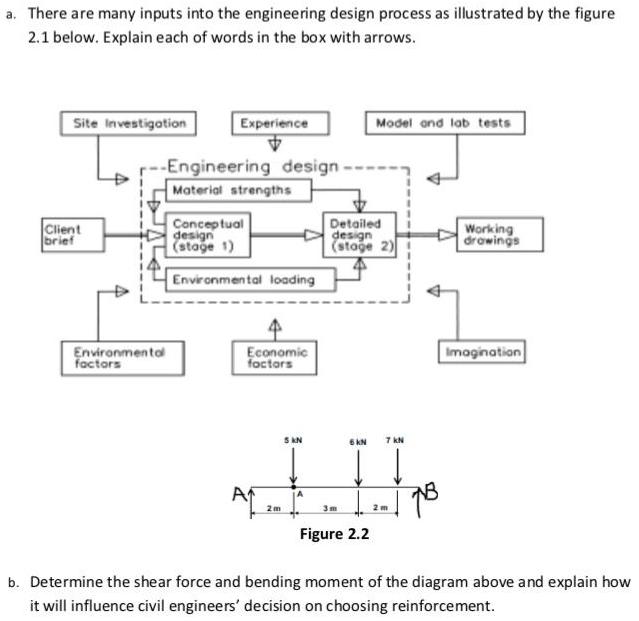

a. There are many inputs into the engineering design process as illustrated by the figure 2.1 below. Explain each of words in the box with arrows. Site Investigotion Experience Model and lab tests -Engineering design- Material strengths Client brief Conceptual design (stage 1) Detailed design (stoge 2) Working drowings Environmental loading Environmental Factors Economic foctors Imogination S KN 6 KN 7 kN 2 m Figure 2.2 b. Determine the shear force and bending moment of the diagram above and explain how it will influence civil engineers' decision on choosing reinforcement. a. There are many inputs into the engineering design process as illustrated by the figure 2.1 below. Explain each of words in the box with arrows. Site Investigotion Experience Model and lab tests -Engineering design- Material strengths Client brief Conceptual design (stage 1) Detailed design (stoge 2) Working drowings Environmental loading Environmental Factors Economic foctors Imogination S KN 6 KN 7 kN 2 m Figure 2.2 b. Determine the shear force and bending moment of the diagram above and explain how it will influence civil engineers' decision on choosing reinforcement.
Expert Answer:
Answer rating: 100% (QA)
a Figure 21 Site investigation is the 1st part of construction It is major process that comprises of lab test and field test Site investigation give t... View the full answer
