Activity 2 Activity 2: Learning Unit 1-3: Diagram and explanation (Marks: 45) Q.2.1 Draw a network...

Transcribed Image Text:

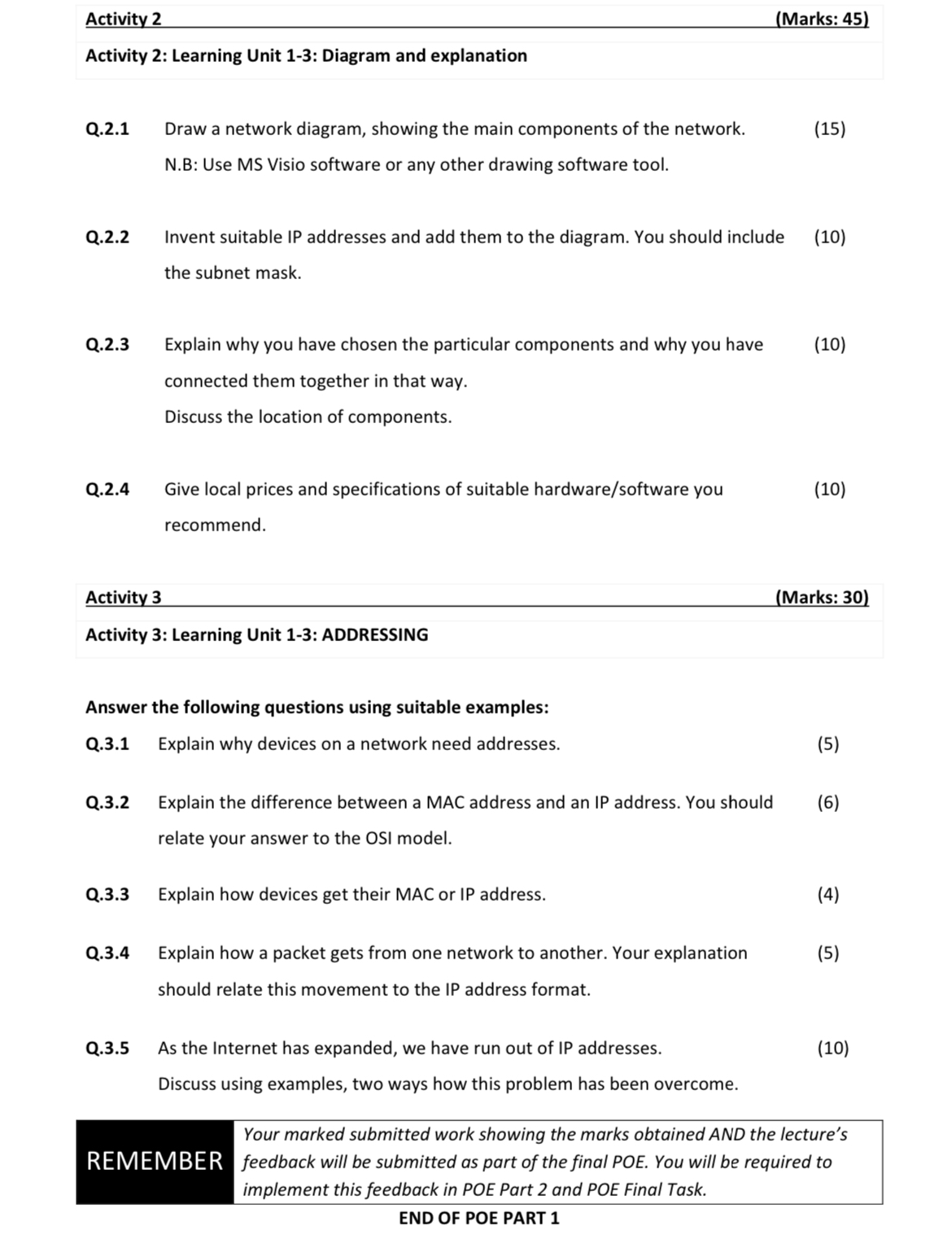

Activity 2 Activity 2: Learning Unit 1-3: Diagram and explanation (Marks: 45) Q.2.1 Draw a network diagram, showing the main components of the network. N.B: Use MS Visio software or any other drawing software tool. (15) Q.2.2 Invent suitable IP addresses and add them to the diagram. You should include the subnet mask. (10) Q.2.3 Explain why you have chosen the particular components and why you have connected them together in that way. (10) Discuss the location of components. Q.2.4 Give local prices and specifications of suitable hardware/software you recommend. (10) Activity 3 Activity 3: Learning Unit 1-3: ADDRESSING (Marks: 30) Answer the following questions using suitable examples: Q.3.1 Explain why devices on a network need addresses. (5) Q.3.2 Explain the difference between a MAC address and an IP address. You should relate your answer to the OSI model. (6) Q.3.3 Explain how devices get their MAC or IP address. (4) Q.3.4 Explain how a packet gets from one network to another. Your explanation (5) should relate this movement to the IP address format. Q.3.5 As the Internet has expanded, we have run out of IP addresses. Discuss using examples, two ways how this problem has been overcome. (10) Your marked submitted work showing the marks obtained AND the lecture's REMEMBER feedback will be submitted as part of the final POE. You will be required to implement this feedback in POE Part 2 and POE Final Task. END OF POE PART 1 Activity 2 Activity 2: Learning Unit 1-3: Diagram and explanation (Marks: 45) Q.2.1 Draw a network diagram, showing the main components of the network. N.B: Use MS Visio software or any other drawing software tool. (15) Q.2.2 Invent suitable IP addresses and add them to the diagram. You should include the subnet mask. (10) Q.2.3 Explain why you have chosen the particular components and why you have connected them together in that way. (10) Discuss the location of components. Q.2.4 Give local prices and specifications of suitable hardware/software you recommend. (10) Activity 3 Activity 3: Learning Unit 1-3: ADDRESSING (Marks: 30) Answer the following questions using suitable examples: Q.3.1 Explain why devices on a network need addresses. (5) Q.3.2 Explain the difference between a MAC address and an IP address. You should relate your answer to the OSI model. (6) Q.3.3 Explain how devices get their MAC or IP address. (4) Q.3.4 Explain how a packet gets from one network to another. Your explanation (5) should relate this movement to the IP address format. Q.3.5 As the Internet has expanded, we have run out of IP addresses. Discuss using examples, two ways how this problem has been overcome. (10) Your marked submitted work showing the marks obtained AND the lecture's REMEMBER feedback will be submitted as part of the final POE. You will be required to implement this feedback in POE Part 2 and POE Final Task. END OF POE PART 1
