Body Task 1, select distinct Class C Private Address spaces for each office and fill in...

Transcribed Image Text:

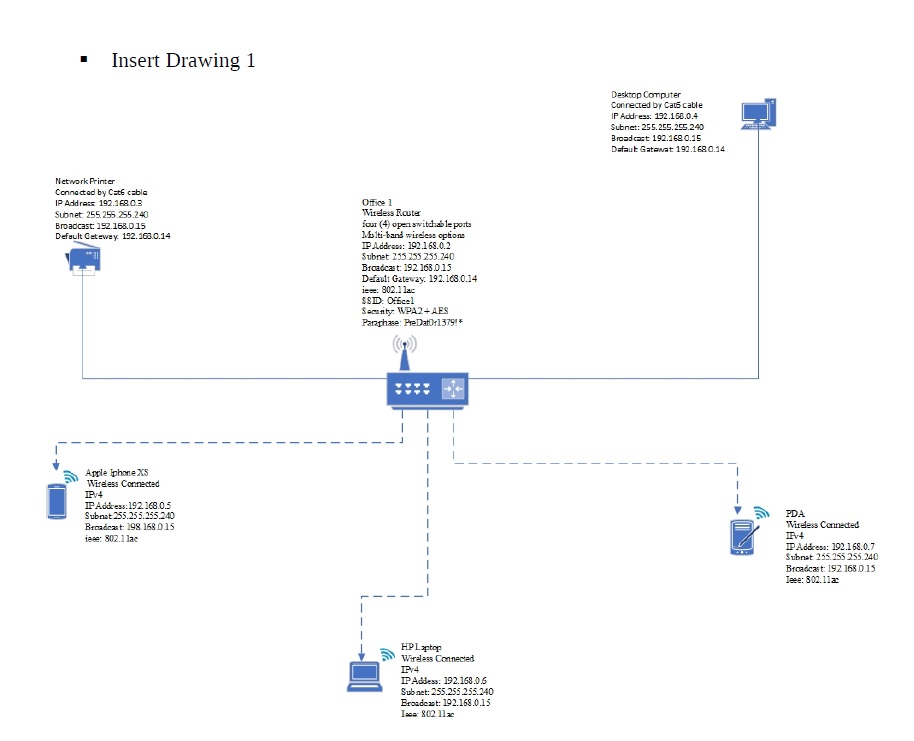

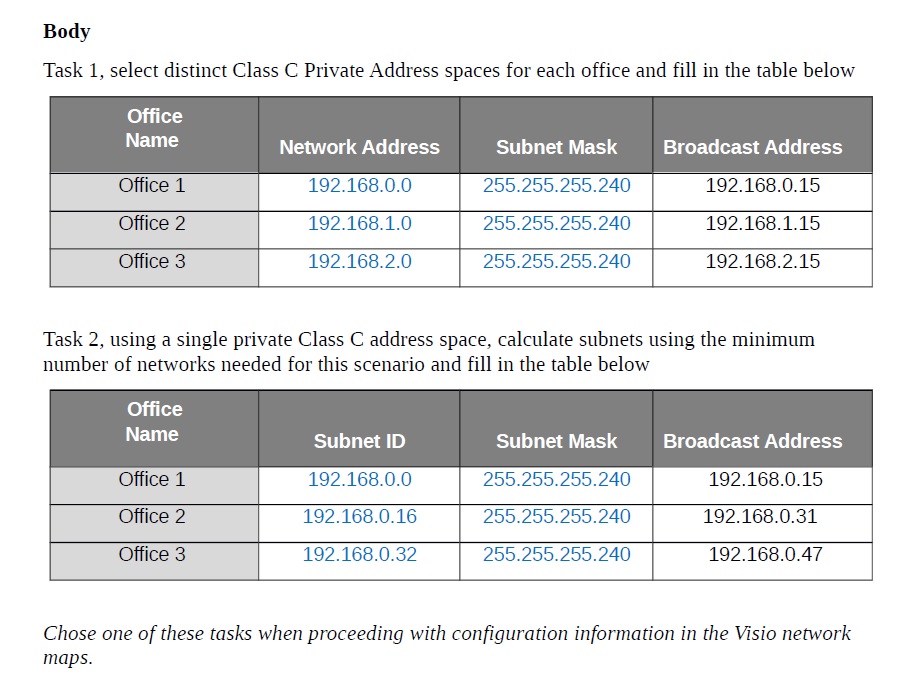

Body Task 1, select distinct Class C Private Address spaces for each office and fill in the table below Office Name Network Address Subnet Mask Broadcast Address Office 1 192.168.0.0 255.255.255.240 192.168.0.15 Office 2 192.168.1.0 255.255.255.240 192.168.1.15 Office 3 192.168.2.0 255.255.255.240 192.168.2.15 Task 2, using a single private Class C address space, calculate subnets using the minimum number of networks needed for this scenario and fill in the table below Office Name Office 1 Subnet ID 192.168.0.0 Subnet Mask Broadcast Address 255.255.255.240 192.168.0.15 Office 2 192.168.0.16 255.255.255.240 192.168.0.31 Office 3 192.168.0.32 255.255.255.240 192.168.0.47 Chose one of these tasks when proceeding with configuration information in the Visio network maps. Insert Drawing 1 Network Printer Connected by Cat cable IP Address 192.168.0.3 Subnet: 255.255.255.240 Broadcast: 152.168.0.15 Default Gateway: 192.168.0.14 Office 1 Wireless Router four (4) open switchable ports Malti-band wireless options IP Address: 192.168.0.2 Subnet 255.255.255.240 Broadcast: 192.168.0.15 Default Gateway: 192.168.0.14 ies: 802.11ac $SID: Officel Security: WPA2+AES Paraphase: PreDator1379!* Apple Iphone XS Wireless Connected IPv4 IP Address: 192.168.0.5 Subnat 255.255.255.240 Broadcast: 198.168.0.15 ieee: 802.11ac HP Laptop Wireless Connected IPv4 IP Addess: 192.168.0.5 Subnet: 255.255.255.240 Broadcast: 192.168.0.15 I: 802.11ac Desktop Computer Connected by Cat5 cable IP Address: 192.168.0.4 Subnet: 255.255.255.240 Broadcast 192.168.0.15 Default Gatewat 192.1680.14 PDA Wireless Connected IPv4 IP Address: 192.168.0.7 Subnat 255.255.255.240 Broadcast: 192.168.0.15 Jeee: 802.11ac Network Printer Connected by Cat6 cable IP Address 192.168.1.3 Subnet: 255.255.255.240 Broadcast: 152.168.1.15 Default Cateway: 192.168.1.14 Office 2 Wireless Router four (4) open switchable porta Malti-band wireless options IP Address: 192.168.1.2 Subnet 255 255 255.240 Broadcast: 192.168.1.15 Default Gateway: 192.168.1.14 i: 802.11ac SSID: Office2 Security: WPA2+AES Paraphase: PreDator1389!* Apple Iphone XS Wireless Connected IPv4 IP Address: 192.168.1.5 Subnat 255.255.255.240 Broadcast: 198.168.1.15 ieee: 802.11ac HP Laptop Wireless Connected IPv4 IP Addess: 192.168.1.5 Subnet: 255.255.255.240 Broadcast: 192.168.1.15 I: 802.11ac Desktop Computer Connected by Cat5 cable IP Address: 192.168.1.4 Subnet: 255.255.255.240 Broadcast 192.168 1.15 Default Gatewat 192.168 1.14 PDA Wireless Connected IPv4 IP Address: 192.168.1.7 Subnat 255.255 255.240 Broadcast: 192.168.1.15 Jeee: 802.11ac Network Printer Connected by Cat cable IP Address 192.168.2.3 Subnet: 255.255.255.240 Broadcast: 192.168.2.15 Default Gateway: 192.168.2.14 Office 3 Wireless Router four (4) open switchable porta Malti-band wireless options IP Address: 192.168.2.2 Subnet 255.255.255.240 Broadcast: 192.168.2.15 Default Gateway: 192.168.2.14 i: 802.11ac SSID: Office3 Security: WPA2+AES Paraphase: PreDator1399!* Apple Iphone XS Wireless Connected IPv4 IP Address: 192.168.2.5 Subnat 255.255.255.240 Broadcast: 198.168.2.15 ieee: 802.11ac HP Laptop Wireless Connected IPv4 IP Addess: 192.168.2.6 Subnet: 255.255.255.240 Broadcast: 192.168.2.15 i: 802.11ac Desktop Computer Connected by Cat5 cable IP Address: 192.168.2.4 Subnet: 255.255.255.240 Broadcast 192.1682.15 Default Gatewat 192.168.2.14 PDA Wireless Connected IPv4 IP Address: 192.168.2.7 Subnat 255.255.255.240 Broadcast: 192.168.2.15 ieee: 802.11ac Body Task 1, select distinct Class C Private Address spaces for each office and fill in the table below Office Name Network Address Subnet Mask Broadcast Address Office 1 192.168.0.0 255.255.255.240 192.168.0.15 Office 2 192.168.1.0 255.255.255.240 192.168.1.15 Office 3 192.168.2.0 255.255.255.240 192.168.2.15 Task 2, using a single private Class C address space, calculate subnets using the minimum number of networks needed for this scenario and fill in the table below Office Name Office 1 Subnet ID 192.168.0.0 Subnet Mask Broadcast Address 255.255.255.240 192.168.0.15 Office 2 192.168.0.16 255.255.255.240 192.168.0.31 Office 3 192.168.0.32 255.255.255.240 192.168.0.47 Chose one of these tasks when proceeding with configuration information in the Visio network maps. Insert Drawing 1 Network Printer Connected by Cat cable IP Address 192.168.0.3 Subnet: 255.255.255.240 Broadcast: 152.168.0.15 Default Gateway: 192.168.0.14 Office 1 Wireless Router four (4) open switchable ports Malti-band wireless options IP Address: 192.168.0.2 Subnet 255.255.255.240 Broadcast: 192.168.0.15 Default Gateway: 192.168.0.14 ies: 802.11ac $SID: Officel Security: WPA2+AES Paraphase: PreDator1379!* Apple Iphone XS Wireless Connected IPv4 IP Address: 192.168.0.5 Subnat 255.255.255.240 Broadcast: 198.168.0.15 ieee: 802.11ac HP Laptop Wireless Connected IPv4 IP Addess: 192.168.0.5 Subnet: 255.255.255.240 Broadcast: 192.168.0.15 I: 802.11ac Desktop Computer Connected by Cat5 cable IP Address: 192.168.0.4 Subnet: 255.255.255.240 Broadcast 192.168.0.15 Default Gatewat 192.1680.14 PDA Wireless Connected IPv4 IP Address: 192.168.0.7 Subnat 255.255.255.240 Broadcast: 192.168.0.15 Jeee: 802.11ac Network Printer Connected by Cat6 cable IP Address 192.168.1.3 Subnet: 255.255.255.240 Broadcast: 152.168.1.15 Default Cateway: 192.168.1.14 Office 2 Wireless Router four (4) open switchable porta Malti-band wireless options IP Address: 192.168.1.2 Subnet 255 255 255.240 Broadcast: 192.168.1.15 Default Gateway: 192.168.1.14 i: 802.11ac SSID: Office2 Security: WPA2+AES Paraphase: PreDator1389!* Apple Iphone XS Wireless Connected IPv4 IP Address: 192.168.1.5 Subnat 255.255.255.240 Broadcast: 198.168.1.15 ieee: 802.11ac HP Laptop Wireless Connected IPv4 IP Addess: 192.168.1.5 Subnet: 255.255.255.240 Broadcast: 192.168.1.15 I: 802.11ac Desktop Computer Connected by Cat5 cable IP Address: 192.168.1.4 Subnet: 255.255.255.240 Broadcast 192.168 1.15 Default Gatewat 192.168 1.14 PDA Wireless Connected IPv4 IP Address: 192.168.1.7 Subnat 255.255 255.240 Broadcast: 192.168.1.15 Jeee: 802.11ac Network Printer Connected by Cat cable IP Address 192.168.2.3 Subnet: 255.255.255.240 Broadcast: 192.168.2.15 Default Gateway: 192.168.2.14 Office 3 Wireless Router four (4) open switchable porta Malti-band wireless options IP Address: 192.168.2.2 Subnet 255.255.255.240 Broadcast: 192.168.2.15 Default Gateway: 192.168.2.14 i: 802.11ac SSID: Office3 Security: WPA2+AES Paraphase: PreDator1399!* Apple Iphone XS Wireless Connected IPv4 IP Address: 192.168.2.5 Subnat 255.255.255.240 Broadcast: 198.168.2.15 ieee: 802.11ac HP Laptop Wireless Connected IPv4 IP Addess: 192.168.2.6 Subnet: 255.255.255.240 Broadcast: 192.168.2.15 i: 802.11ac Desktop Computer Connected by Cat5 cable IP Address: 192.168.2.4 Subnet: 255.255.255.240 Broadcast 192.1682.15 Default Gatewat 192.168.2.14 PDA Wireless Connected IPv4 IP Address: 192.168.2.7 Subnat 255.255.255.240 Broadcast: 192.168.2.15 ieee: 802.11ac
