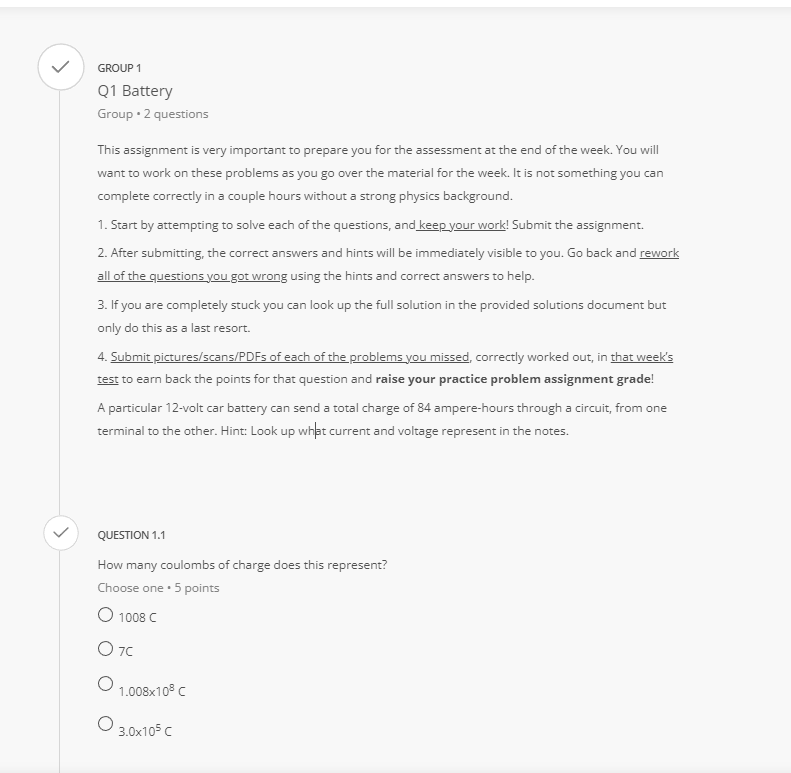

GROUP 1 Q1 Battery Group . 2 questions This assignment is very important to prepare you for the assessment at the end of the week. You will want to work on these problems as you go over the material for the week. It is not something you can complete correctly in a couple hours without a strong physics background. 1. Start by attempting to solve each of the questions, and keep your work! Submit the assignment. 2. After submitting, the correct answers and hints will be immediately visible to you. Go back and rework all of the questions you got wrong using the hints and correct answers to help. 3. If you are completely stuck you can look up the full solution in the provided solutions document but only do this as a last resort. 4. Submit pictures/scans/PDFs of each of the problems you missed, correctly worked out, in that week's test to earn back the points for that question and raise your practice problem assignment grade! A particular 12-volt car battery can send a total charge of 84 ampere-hours through a circuit, from one terminal to the other. Hint: Look up what current and voltage represent in the notes. QUESTION 1.1 How many coulombs of charge does this represent? Choose one . 5 points 1008 C O 7C 1.008x108 C 3.0x105 Cw QUESTION 1.2 If this entire charge undergoes a change in electric potential of 12 volts, how much energy is involved? Choose one . 5 points 2.0x105 ] 3.6x106] 7.1x104] O . 1.0x108 ]GROUP 2 Q2 Circuit A Group . 5 questions Given the below circuit... R1=100 V=10V R2=150 R3=50 V QUESTION 2.1 What is the circuits total resistance? Choose one . 2 points 40 ohms 30 ohms 20 ohms 2.7 ohmsQUESTION 2.2 What is the circuit's total current? Choose one . 2 points O 3.7 amps O 0.5amps O 3 amps O 0.33 amps QUESTION 2.3 What is the voltage across R? Choose one . 2 points O 0.033V O 3.3 V O 30.3 V O 0.33 VQUESTION 2.4 What is the power used by Ry? Choose one . 2 points O 1.1 W O 10W 0.1W 3.0 W QUESTION 2.5 What is the voltage in the wire between R1 and R2? (Assume the negative end of the battery has a voltage of 0 V.) Choose one . 2 points O 3.3 V O 10 V O 6.7 V O ovGROUP 3 Q3 Circuit B Group . 7 questions Given the below circuit... V= 10V R2=40 R1=100 w QUESTION 3.1 What is the circuit's total resistance? Choose one . 2 points 14 ohms 24 Ohms 2.86 ohms O 0.40 OhmsQUESTION 3.2 What is the circuit's total current? Choose one . 2 points O 0.71 amps O 3.5 amps O 0.28 amps O 0.41 amps QUESTION 3.3 What is the voltage across R1? Choose one . 2 points O 1V O 35 V O 14 V O 10 VQUESTION 3.4 What is the voltage across R2? Choose one . 1 point O 10 V O 2.5 V O 40 V Oov QUESTION 3.5 What is the current through R1? Choose one . 1 point O 1 amp 20 amps 100 amps 0 ampsQUESTION 3.6 What is the current through R2? Choose one . 1 point 40 amps O 14 amps O 0.4 amps O 2.5 amps w QUESTION 3.7 What is the total current? Choose one . 1 point 3.5 amps 1.5 amps O 0.5 amps 2.5 ampsGROUP 4 Q4 Circuit C Group . 8 questions Watch the bellow mini lecture on equivalent circuits before starting the problem. Mini lecture with captions For the circuit below, each individual resistor has 2 Ohms of resistance. E G J Text description of the circuit above. Starting at the battery, the wire goes through one resistor to point K. After point K the wire splits into a top, middle and bottom main branches. The top main branch starts at point Can then splits into a top and bottom small branch. The top small branch has one resistor. The bottom small branch starts with point A, has 2 resistors in a row, and then point B. The 2 small branches reconnect at point D, goes though a resistor and the top main branch ends at point E.The middle main branch starts at point F, has 3 resistors in a row and ends at point G. The bottom main branch starts at point H, splits into 2 small branches that have one resistor each before recombine at point I. It then goes though 2 more resistors to pointJ. All three main branches then come back together at point L and then the wire returns to the battery. QUESTION 4.1 Find the total resistance (equivalent resistance) between A and B (two resistors). Choose one . 2 points 1 ohm O 2 Ohms 0.5 ohms 4 ohms QUESTION 4.2 Find the total resistance (equivalent resistance) between C and D (three resistors). Choose one . 2 points 6 ohms 2 ohms O 1.33 ohms .75 ohmsQUESTION 43 Find the total resistance (equivalent resistance) between C and E (four resistors). Choose one . 1 point 1.25 ohms 3.33 ohms 5.44 ohms O 0.33 ohms QUESTION 4.4 Find the total resistance (equivalent resistance) between F and G (three resistors). Choose one . 1 point 6 ohms O 0.66 ohms 4 ohms 4.66 ohmsQUESTION 4.5 Find the total resistance (equivalent resistance) between H and I (two resistors). Choose one . 1 point 0.167 ohms 2 ohms 4 ohms 1 ohm QUESTION 4.6 Find the total resistance (equivalent resistance) between H and ) (four resistors). Choose one . 1 point 5 ohms 3 ohms 0.5 ohms 4 ohmsQUESTION 4.7 Find the total resistance (equivalent resistance) between K and L (11 resistors). Choose one . 1 point 14.3 ohms 7.45 ohms O 1.5 ohms 2.55 ohms QUESTION 4.8 Find the total resistance (equivalent resistance) for the entire circuit (twelve resistors). Choose one . 1 point O 2 ohms 3.5 ohms 0.86 ohms O 0.23 ohmsGKUUP 3 Q5 A sinusoidal wave in string Group . 3 questions A sinusoidal wave travels along a string. The time for a particular point to move from maximum displacement to zero is 0.170 s. QUESTION 5.1 What is the period? Choose one . 4 points O .1705 0.345 O 0.685 O 1.365 QUESTION 5.2 What is the frequency? Choose one . 3 points 1.47Hz 3.54Hz 0.541Hz 3.38HzQUESTION 5.3 If the wavelength is 1.40 m, what is the wave speed? Choose one . 3 points 14.9m/s 3.5m/5 44.36m/5 2.06m/5 GROUP 6 Q6 Soccer Group . 3 questions Two spectators at a soccer game in Montjuic Stadium see and, a moment later, hear the ball being kicked on the playing field. The time delay for spectator A is 0.23 seconds, and for spectator B, it is 0.12 seconds. Sight lines from the two spectators to the player kicking the ball meet at an angle of 90 degrees. Note: speed of sound in room-temp air is 343 meters/second. QUESTION 6.1 How far is spectator A from the player? Choose one . 4 points O 13m O 79m O 43m O 117mQUESTION 6.2 How far is spectator B from the player? Choose one . 3 points O 17m 35m 41m 56m 89m QUESTION 6.3 How far are the spectators from each other? Choose one . 3 points 48m 89m 124m 156mGROUP 7 Q7 Diagnostic ultrasound Group . 2 questions Diagnostic ultrasound of frequency 4.50 megahertz (4.5x10*Hz) is used to examine tumors in soft tissue. QUESTION 7.1 What is the wavelength in air of such a sound wave? Choose one . 5 points O 76m 4.5x10-5m 3.9x10-5m O 7.62x10-5mQUESTION 7.2 If the speed of sound in tissue is 1500 meters per second, what is the wavelength of this wave in tissue? Choose one . 5 points 3.33 x104m O 8.55x10 4 m 6.47x104 m 330m QUESTION & Q8 An ambulance with a siren emitting a whine at 1600 hertz overtakes and passes a cyclist pedaling a bike at 2.44 meters per second. After being passed, the cyclist hears a frequency of 1590 hertz. How fast is the ambulance moving? Choose one . 10 points O 0.298m/5 O 0.65m/s 3.76m/s 4.61m/sV QUESTION 9 Q9 Light in a vacuum is incident on the surface of a glass slab. In the vacuum, the beam makes an angle of 32.0 degrees with the normal to the surface, while in the glass, it makes an angle of 21.0 degrees with the normal. What is the index of refraction of the glass? Note: Use an index of refraction of 1.0 for vacuum. Choose one . 10 points O 0.65 O 11.0 O 1.48 7.49
