Question: 0 / 1 point PLZ HELP: A rectangular bar of dimensions b hmm is subjected to a combined bending load as shown. For b =

0/1 point PLZ HELP:

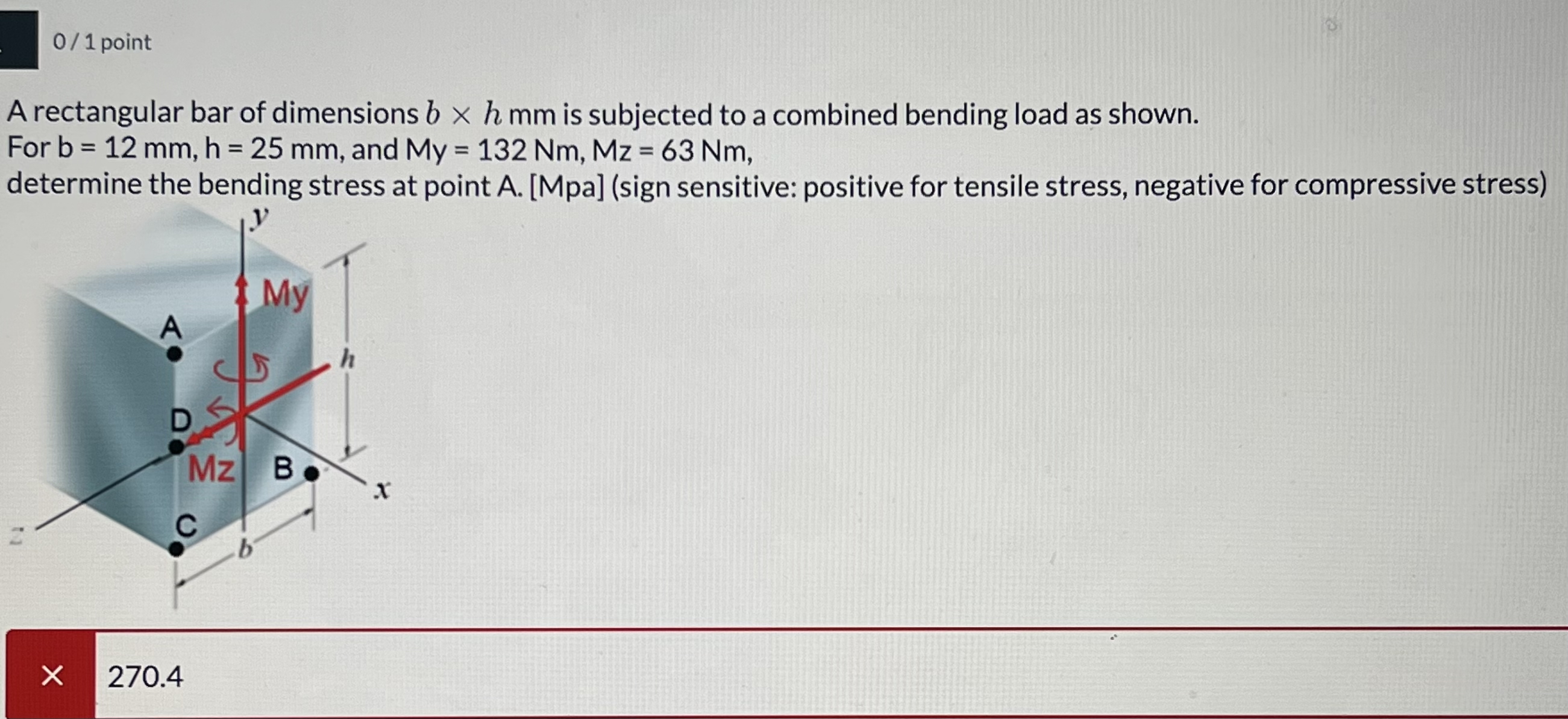

A rectangular bar of dimensions bhmm is subjected to a combined bending load as shown.
For b=12mm,h=25mm, and My=132Nm,Mz=63Nm,
determine the bending stress at point A. PLEASE PLEASE Can you ALSO show how you would determine the bending stress at Point B & for Point C & Point D too. Will rate!! [Mpa](sign sensitive: positive for tensile stress, negative for compressive stress)
270.4
0 / 1 point PLZ HELP: A rectangular bar of
