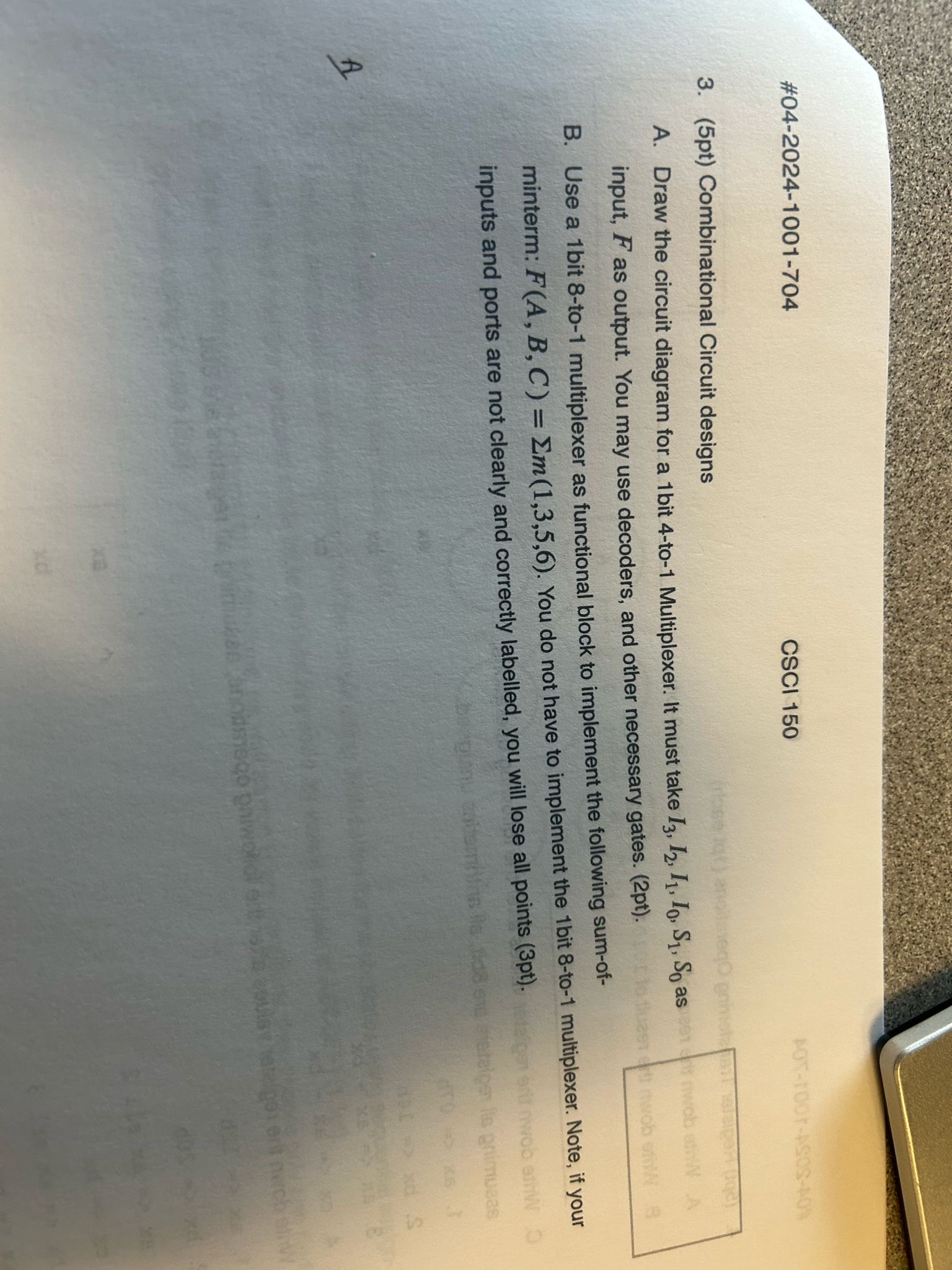

3.(5pt) Combinational Circuit designs
A. Draw the circuit diagram for a 1 bit 4-to-1 Multiplexer. It must take I3,I2,I1,I0,S1,S0 as input, F as output. You may use decoders, and other necessary gates. (2pt).
pot-toor-4SOS-40t
B. Use a 1bit 8-to-1 multiplexer as functional block to implement the following sum-ofminterm: F(A,B,C)=m(1,3,5,6). You do not have to implement the 1 bit 8-to-1 multiplexer. Note, if your inputs and ports are not clearly and correctly labelled, you will lose all points (3pt).
