$0\mathrm{.}5($a$)$ Show the reaction components on a sketch

$1\mathrm{.}5($b$)$ Solve for the reaction components

$3\mathrm{.}0($c$)$ Determine the internal action equations for all required Free Body

Diagrams

$1\mathrm{.}0($d$)$ Sketch the Axial Force Diagram $($AFD$)$ and show main values

$2\mathrm{.}0($e$)$ Sketch the Shear Force Diagram $($SFD$)$ and show main values

$2\mathrm{.}0($f$)$ Sketch the Bending Moment Diagram $($BMD$)$ and show main values

$($g$)$ Use Multiframe to create all diagrams. Attach all printouts including

$2\mathrm{.}5$ AFD, SFD$,$ BMD and deflective curve. Note: Any cross$-$section area is

acceptable.

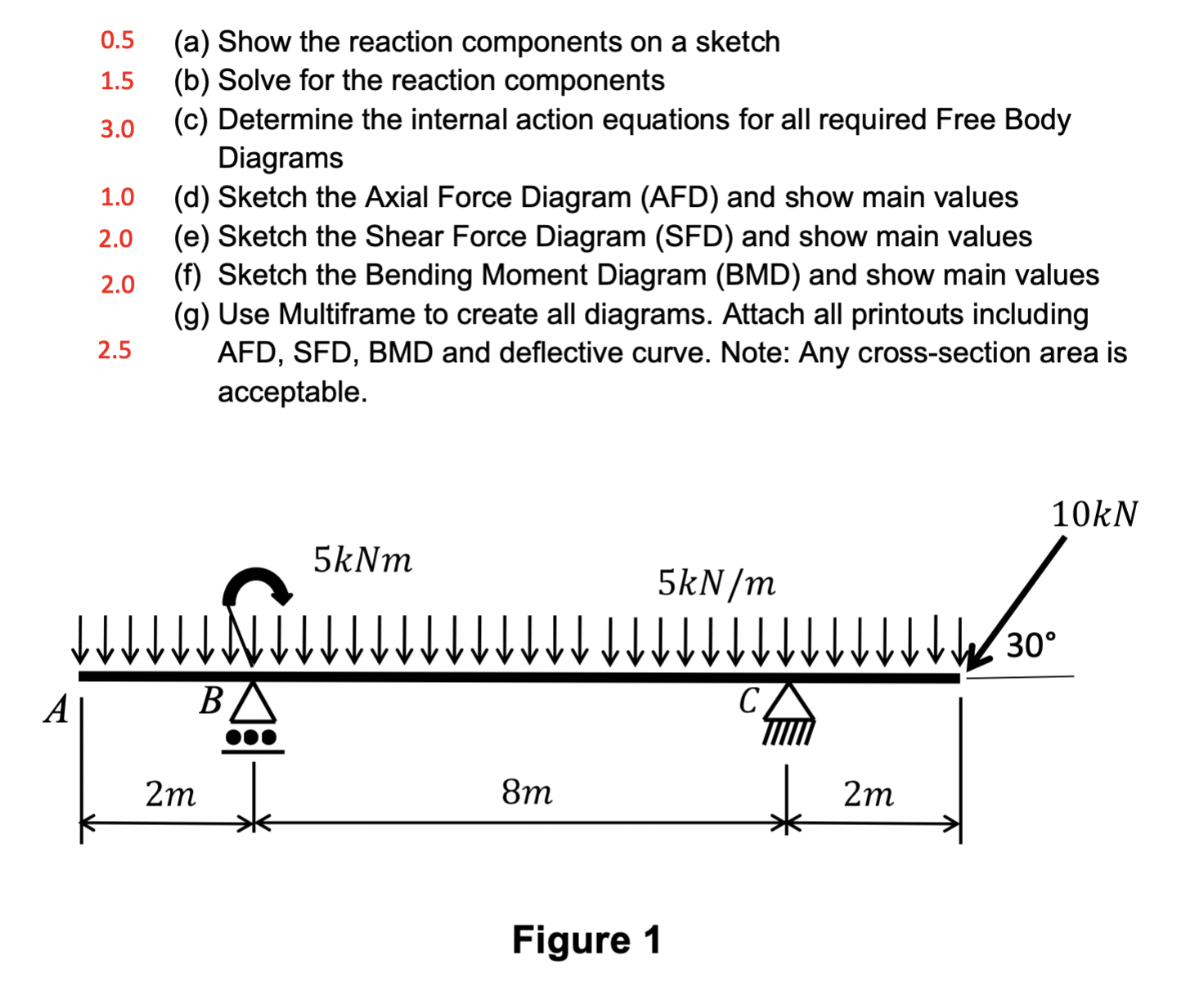

Figure $1$
