Question: 1 0 - 4 3 ( modified ) A . Determine the moment of inertial of the beam's cross - sectional area about the y

10-43(modified)

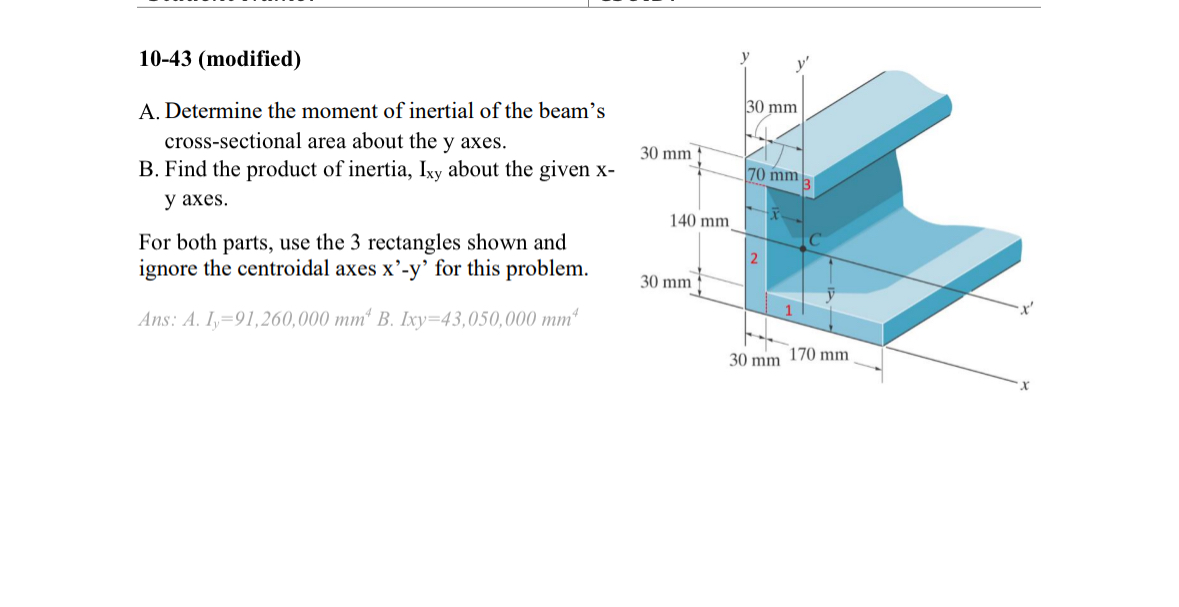

A. Determine the moment of inertial of the beam's cross-sectional area about the y axes.
B. Find the product of inertia, Ixy about the given x y axes.
For both parts, use the 3 rectangles shown and ignore the centroidal axes x'-y' for this problem.
Ans: A.Iy=91,260,000mm4 B. Ixy=43,050,000mm4
1 0 - 4 3 ( modified ) A . Determine the moment

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
