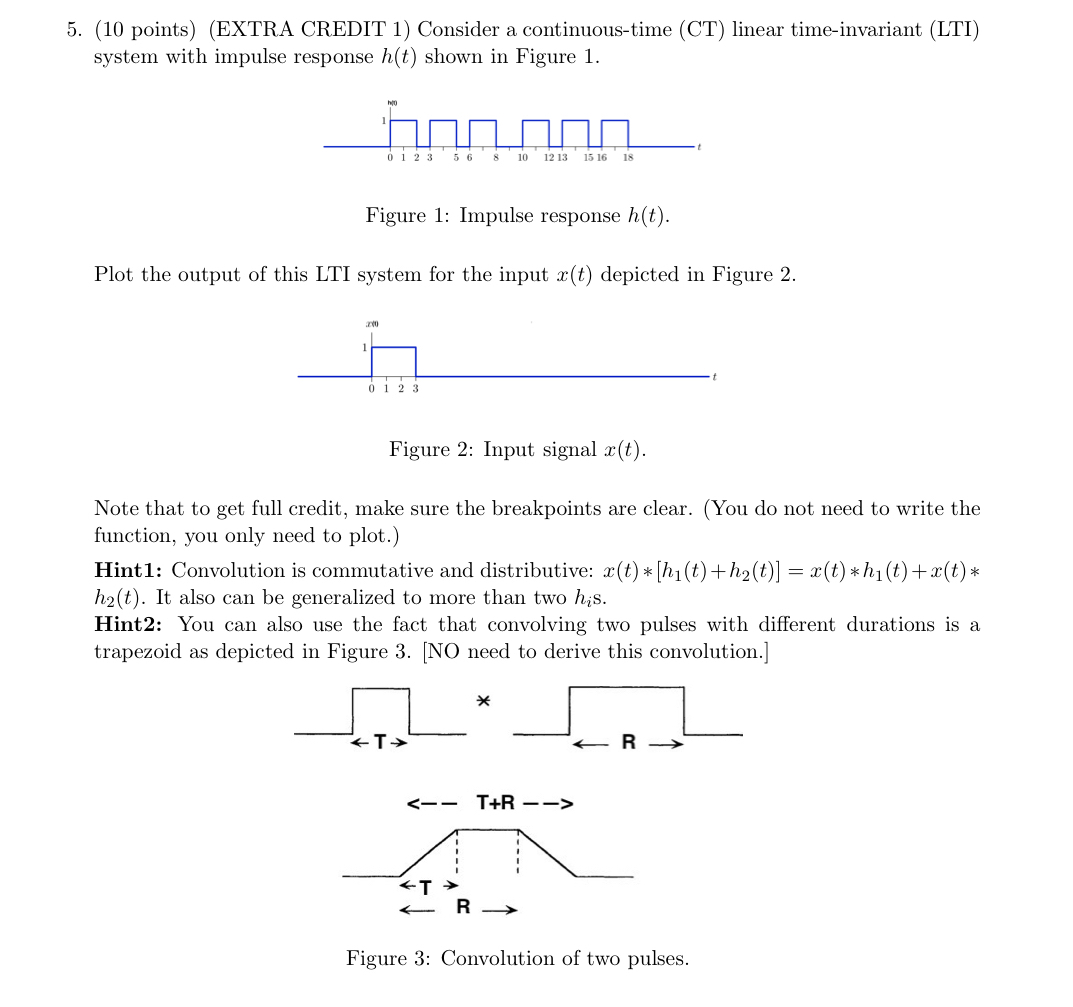

(10 points)(EXTRA CREDIT 1) Consider a continuous-time (CT) linear time-invariant (LTI) system with impulse response h(t) shown in Figure 1.
Figure 1: Impulse response h(t).
Plot the output of this LTI system for the input x(t) depicted in Figure 2.
Figure 2: Input signal x(t).
Note that to get full credit, make sure the breakpoints are clear. (You do not need to write the function, you only need to plot.)
Hint1: Convolution is commutative and distributive: x(t)**[h1(t)+h2(t)]=x(t)**h1(t)+x(t)**h2(t). It also can be generalized to more than two his.
Hint2: You can also use the fact that convolving two pulses with different durations is a trapezoid as depicted in Figure 3.[NO need to derive this convolution.]
Figure 3: Convolution of two pulses.
