Question: ( 1 0 Points ) For problem 1 above, numerically integrate the EOM using RK 4 and the following values and initial conditions: m =

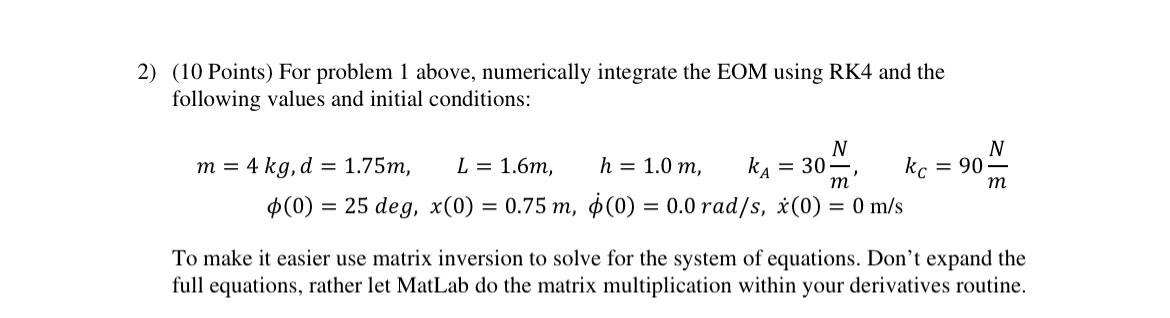

(10 Points) For problem 1 above, numerically integrate the EOM using RK4 and the following values and initial conditions:
m=4kg,d=1.75m,L=1.6m,h=1.0m,kA=30(N)(m),kC=90(N)(m)
(0)=25deg,x(0)=0.75m,(0)=0.0rads,x(0)=0ms
To make it easier use matrix inversion to solve for the system of equations. Don't expand the full equations, rather let MatLab do the matrix multiplication within your derivatives routine.
( 1 0 Points ) For problem 1 above, numerically
