Question: ( 1 0 points ) Use this circuit below to answer these questions. CNTR 4 U is the generic universal counter that we used on

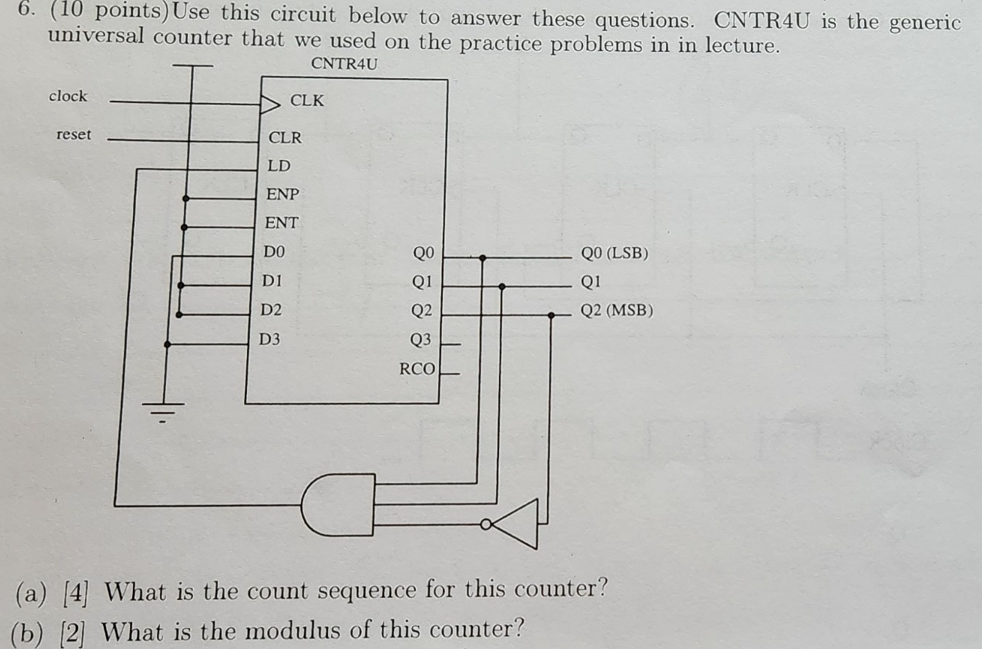

(10 points) Use this circuit below to answer these questions. CNTR4U is the generic
universal counter that we used on the practice problems in in lecture.
(a)[4] What is the count sequence for this counter?
(b)[2] What is the modulus of this counter?
