Question: ( 1 0 pts ) A simple three - phase traffic signal has three seconds of lost time per phase and the critical movements shown

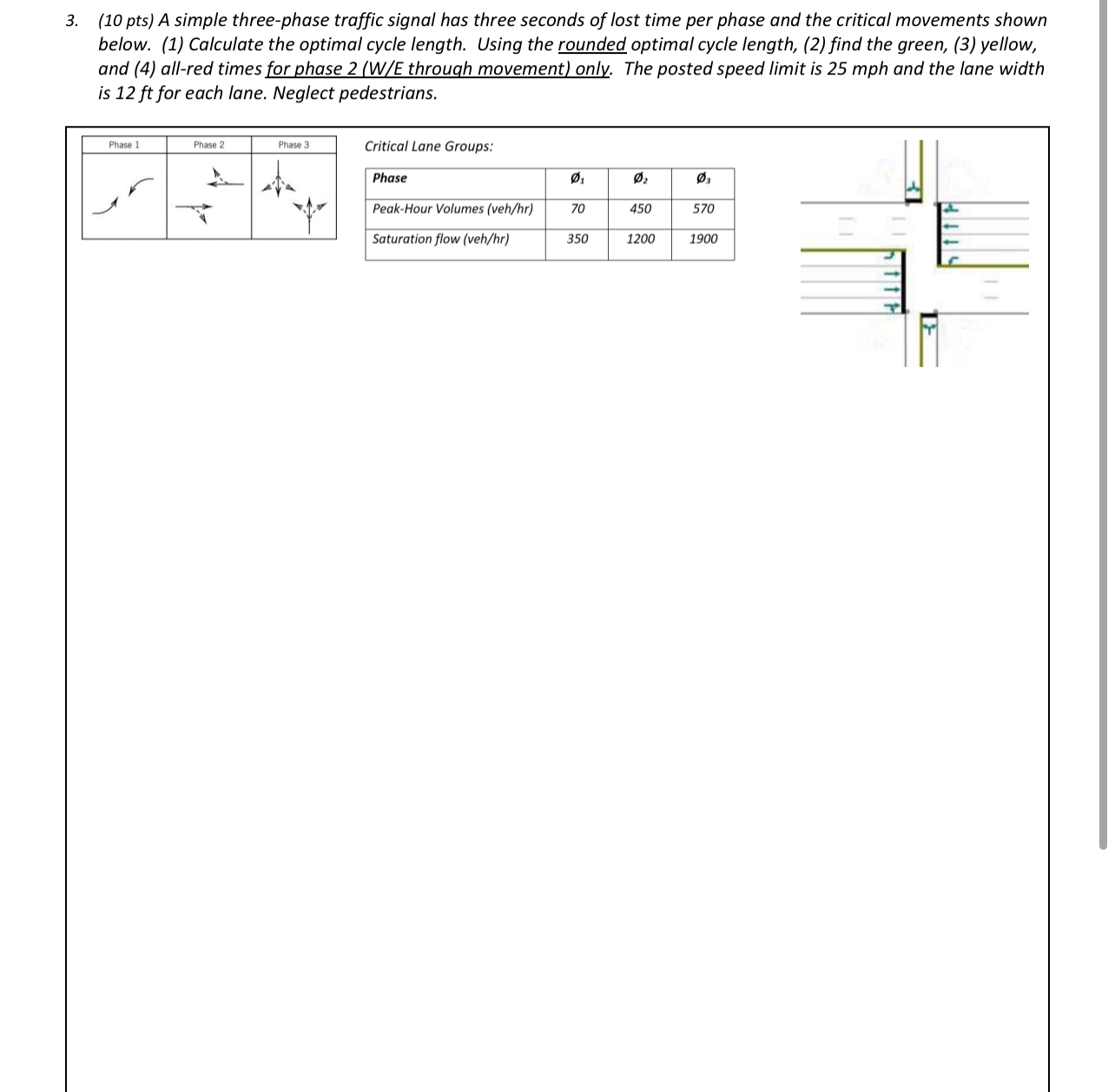

(10 pts) A simple three-phase traffic signal has three seconds of lost time per phase and the critical movements shown below. (1) Calculate the optimal cycle length. Using the rounded optimal cycle length, (2) find the green, (3) yellow, and (4) all-red times for phase 2(W/E through movement) only. The posted speed limit is 25mph and the lane width is 12ft for each lane. Neglect pedestrians.
Critical Lane Groups:
\table[[Phase,O?1,O?2,O?3
( 1 0 pts ) A simple three - phase traffic signal
