Question: 1 1 . 2 - 3 Two rigid bars are connected with a rotational spring, as shown in the figure. Assume that the elastic rotational

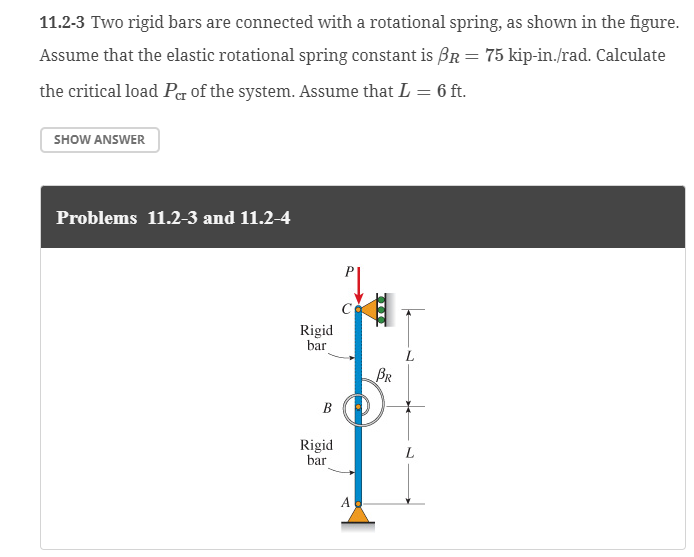

11.2-3 Two rigid bars are connected with a rotational spring, as shown in the figure.
Assume that the elastic rotational spring constant is R=75 kip-in./rad. Calculate
the critical load Pcr of the system. Assume that L=6ft.
Please show where you get all equations from and all steps thoroughly!
1 1 . 2 - 3 Two rigid bars are connected with a

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
