Question: * 1 1 - 4 4 . The two pulleys fixed to the shaft are loaded as shown. If the journal bearings at A and

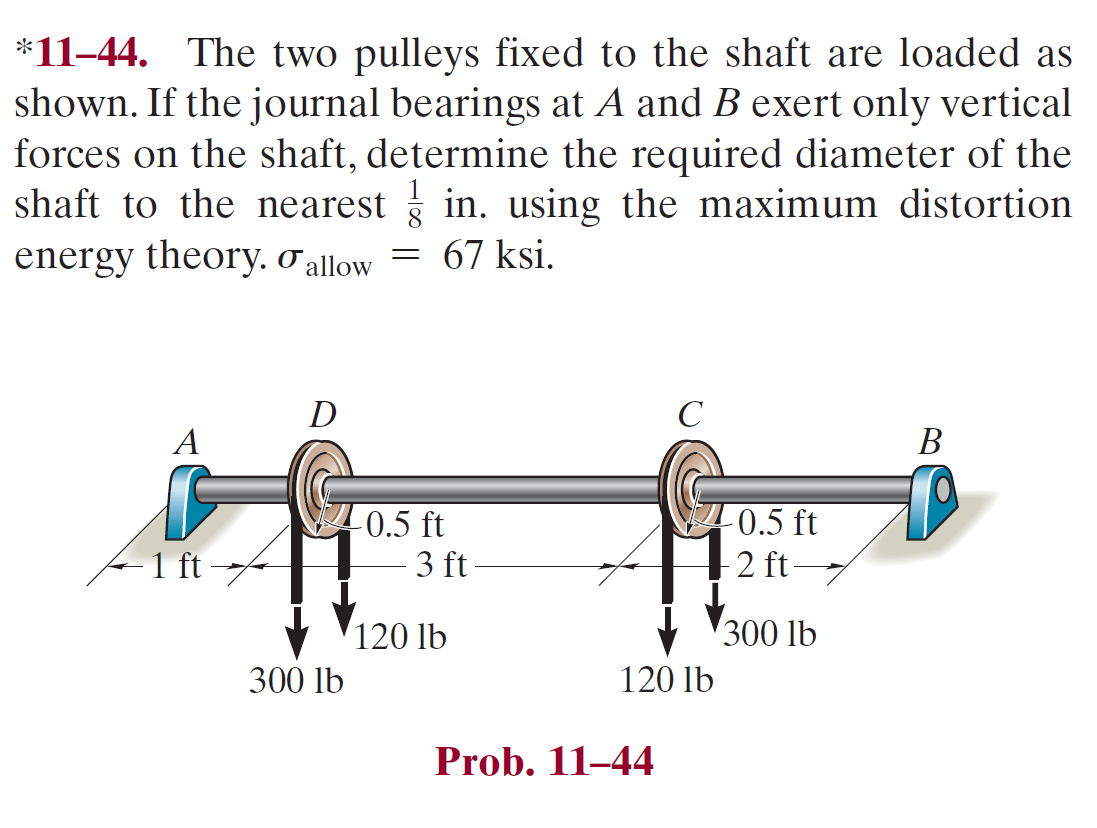

*11-44. The two pulleys fixed to the shaft are loaded as
shown. If the journal bearings at A and B exert only vertical
forces on the shaft, determine the required diameter of the
shaft to the nearest (1)/(8) in. using the maximum distortion
energy theory. \sigma _(allow )=67ksi.
Prob. 11-44
