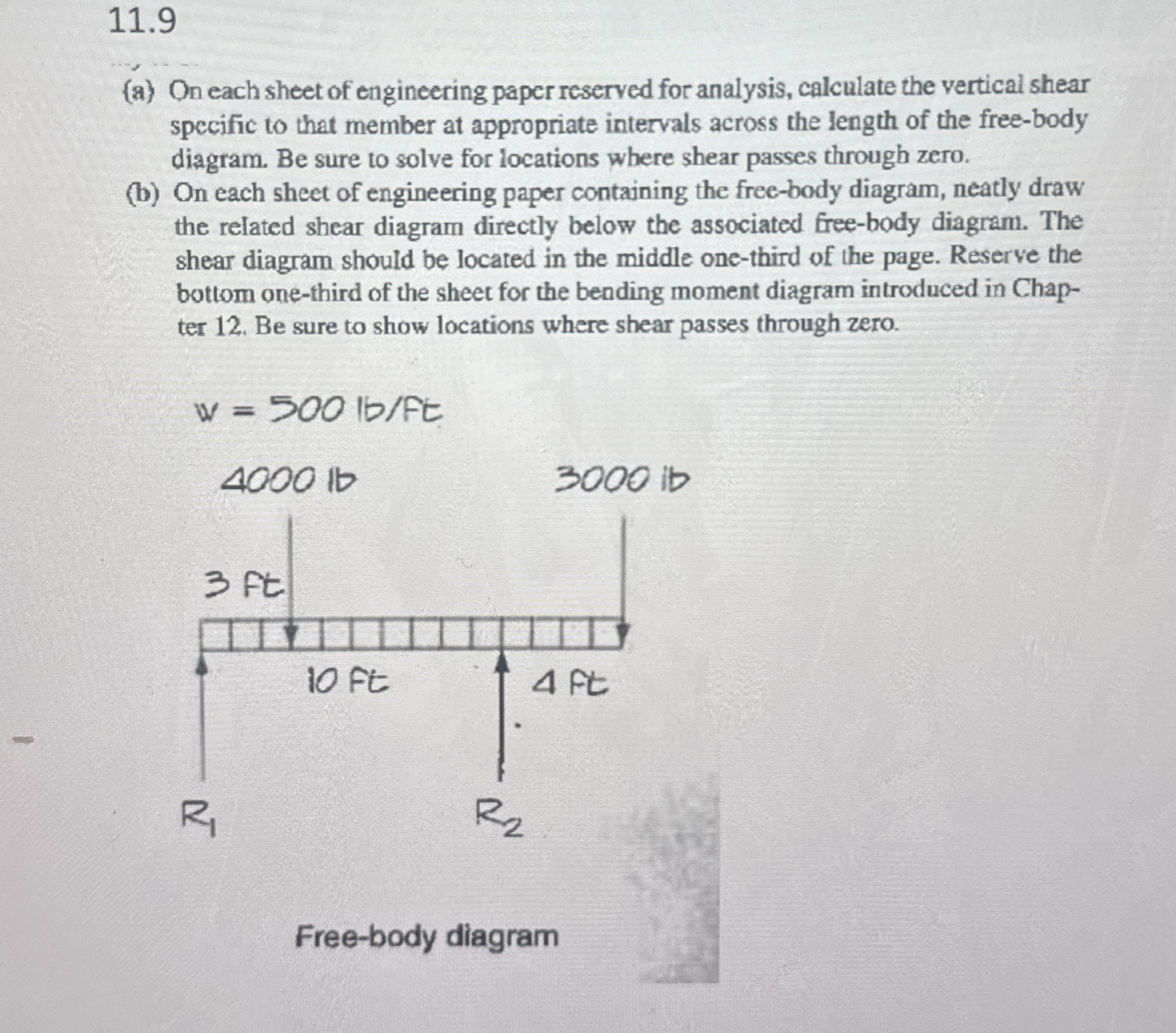

$11\mathrm{.}9$

$($a$)$ On each sheet of engineering paper reserved for analysis, calculate the vertical shear specific to that member at appropriate intervals across the length of the free$-$body diagram. Be sure to solve for locations where shear passes through zero.

$($b$)$ On each sheet of engineering paper containing the free$-$body diagram, neatly draw the related shear diagram directly below the associated free$-$body diagram. The shear diagram should be located in the middle one$-$third of the page. Reserve the bottom one$-$third of the sheet for the bending moment diagram introduced in Chapter $12.$ Be sure to show locations where shear passes through zero.

$w=500l\frac{b}{F}t$

Free$-$body diagram
