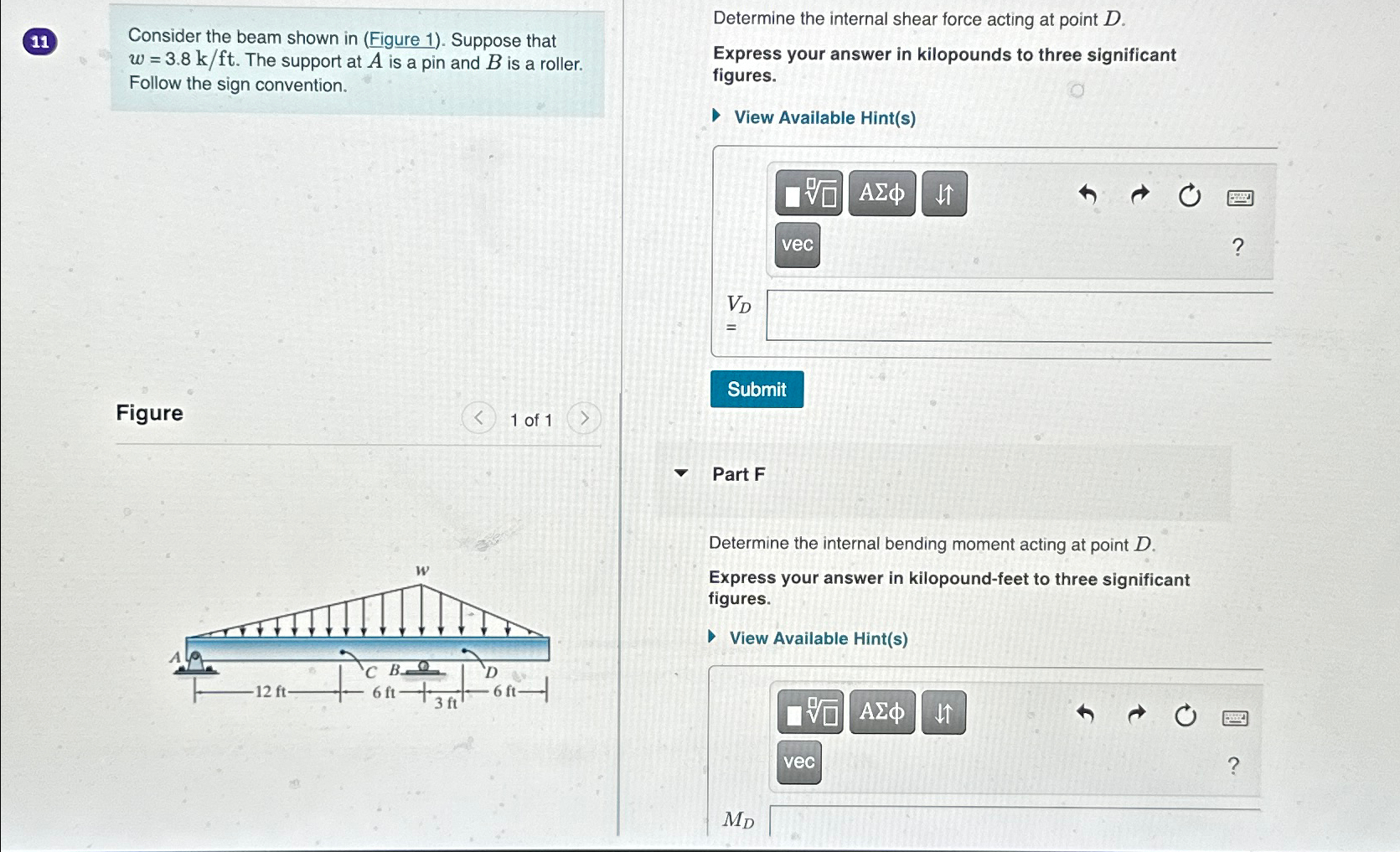

Question: ( 1 1 ) Consider the beam shown in ( Figure 1 ) . Suppose that w = 3 . 8 k f t .

(11) Consider the beam shown in (Figure 1). Suppose that w=3.8kft. The support at A is a pin and B is a roller. Follow the sign convention.
Figure
1 of 1
Determine the internal bending moment acting at point D.
Express your answer in kilopound-feet to three significant figures.
View Available Hint(s)
MD\end{array}]
Part F
( 1 1 ) Consider the beam shown in ( Figure 1 ) .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
