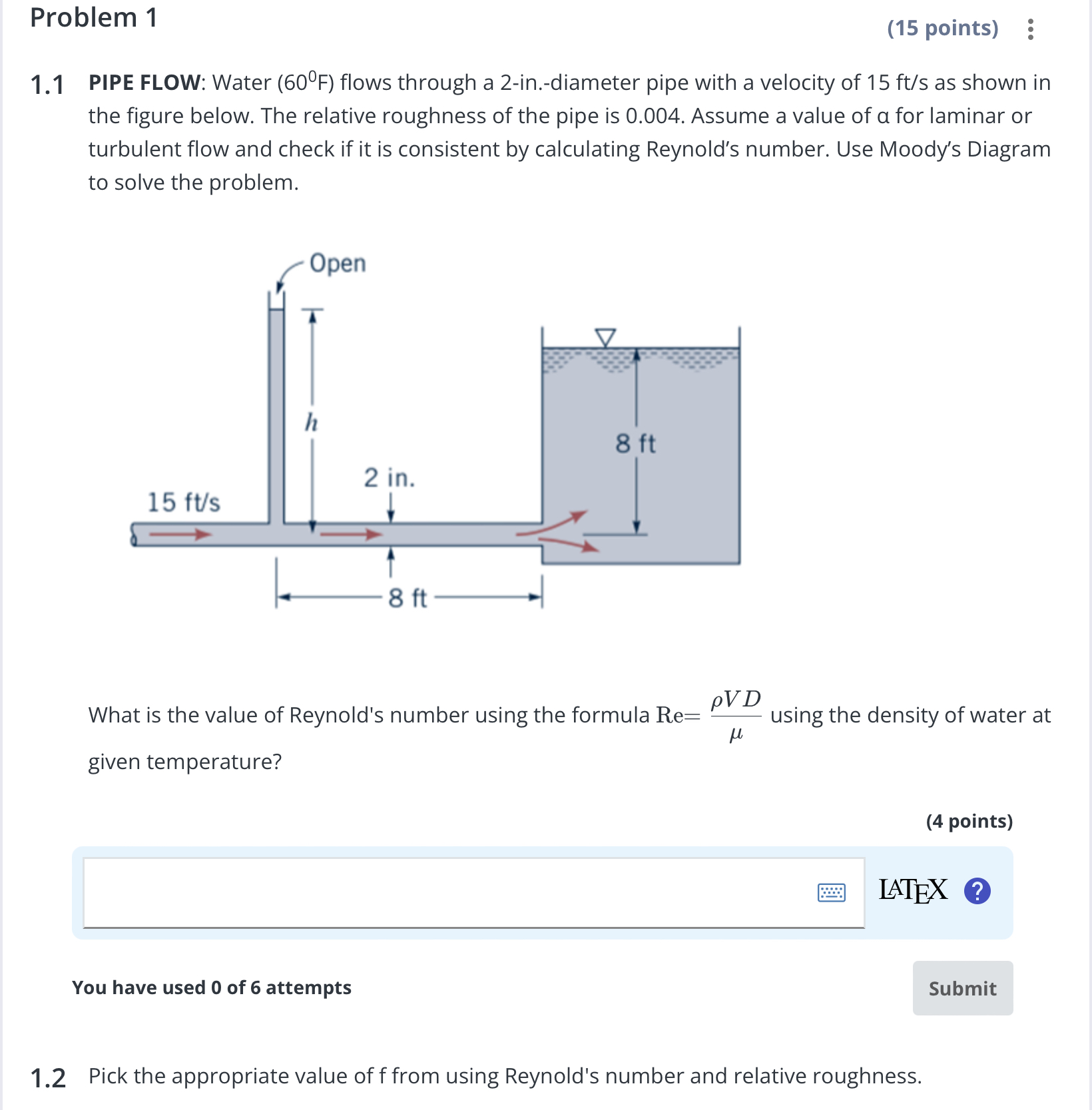

$1\mathrm{.}1$ PIPE FLOW: Water $(60^($@$)$F$)$ flows through a $2-$in$.-$diameter pipe with a velocity of $15$ft$//$s as shown in

the figure below. The relative roughness of the pipe is $0\mathrm{.}004.$ Assume a value of a for laminar or

turbulent flow and check if it is consistent by calculating Reynold's number. Use Moody's Diagram

to solve the problem.

What is the value of Reynold's number using the formula Re$=($rho VD$)/($mu$)$ using the density of water at

given temperature?

You have used $0$ of $6$ attempts

$1\mathrm{.}2$ Pick the appropriate value of f from using Reynold's number and relative roughness.

$1\mathrm{.}3$

What is the value of minor loss $($in ft$)$ due to exit?

$1\mathrm{.}4$

Determine the height, h$,$ to which the water rises in the piezometer tube.
