Question: 1. (1 point) Consider the objects shown in the figure below. Which of the objects have exactly 4 unknown reaction forces? A. (c) only

1. (1 point) Consider the objects shown in the figure below. Which

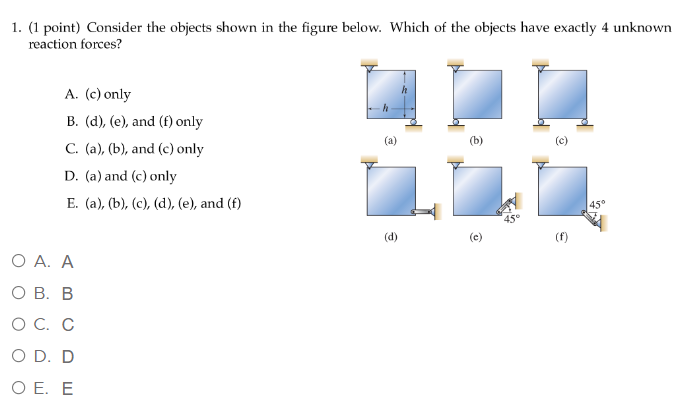

1. (1 point) Consider the objects shown in the figure below. Which of the objects have exactly 4 unknown reaction forces? A. (c) only B. (d), (e), and (f) only C. (a), (b), and (c) only D. (a) and (c) only E. (a), (b), (c), (d), (e), and (f) . O B. B O C. C O D. D . (a) (b) (d) 45

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
