Question: 1 2 . 5 5 and 1 2 . 5 6 Draw the shear and bending - moment diagrams for the beam and loading shown,

12.55 and 12.56 Draw the shear and bending-moment diagrams for the beam and loading shown, and determine the maximum normal stress due to bending.

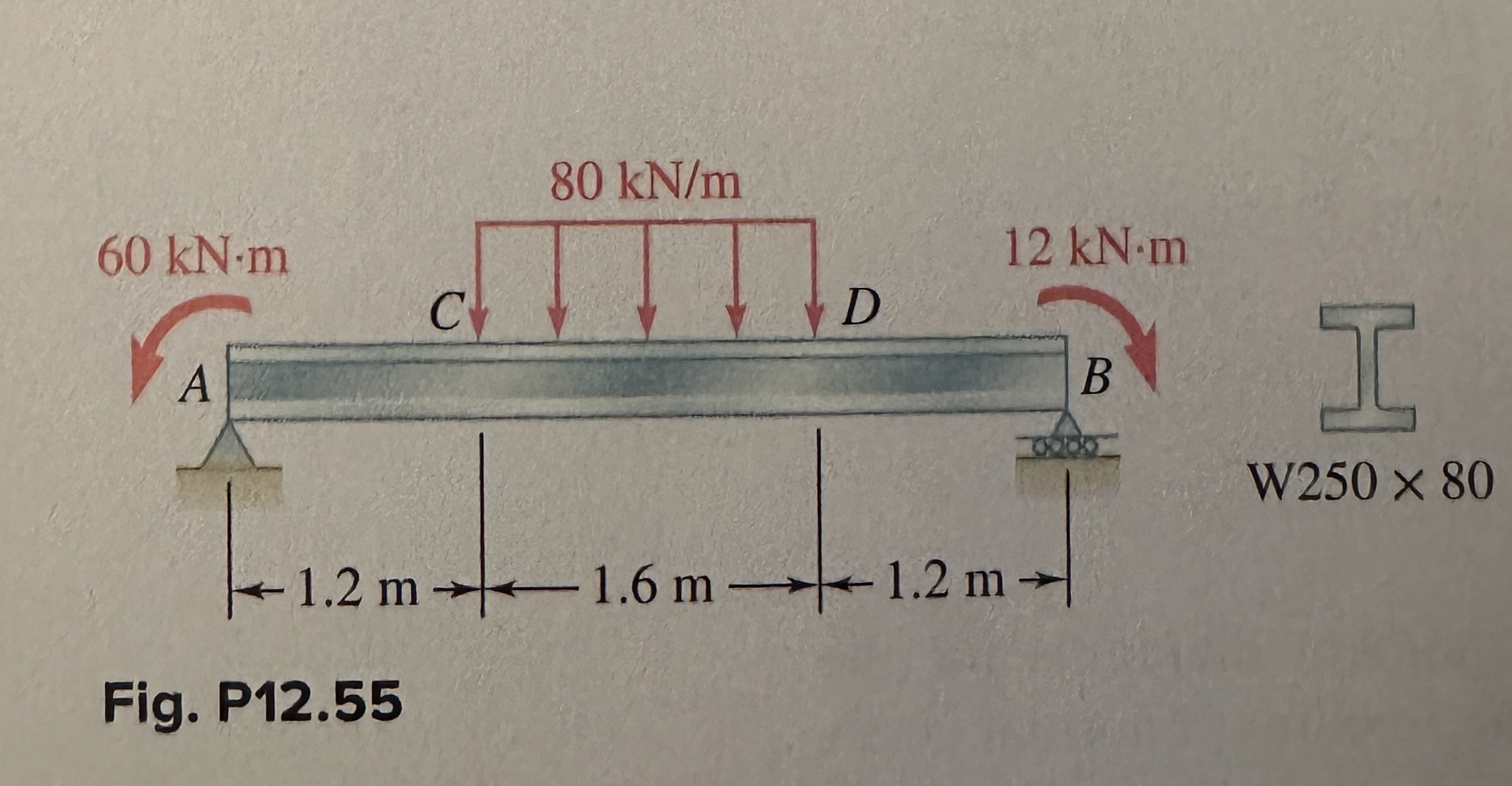

Fig. P12.55
1 2 . 5 5 and 1 2 . 5 6 Draw the shear and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
