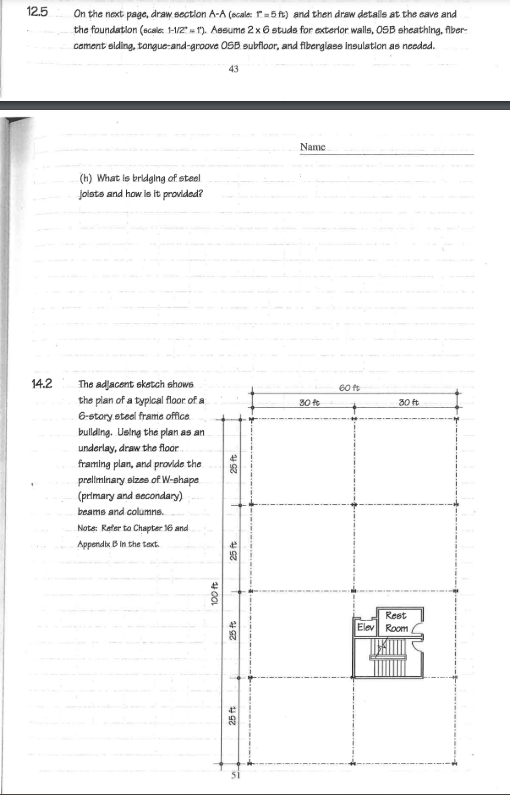

$12\mathrm{.}5$

On the next page, draw section $A-A($scale: $r=5ft)$ and then draw detalis at the eave and the foundation $($scale: $1-1/2=1).$ Assume $26$ studs for exterior walls, OSB sheathing, fibercement eiding, tongue$-$and$-$groove OSB subfioor, and fiberglass Insulation as needed.

$43$

Name

$($h$)$ What is bridging of steel jolsts and how is it provided?

$14\mathrm{.}2$

The adjacent sketch shows

the plan of a typical floor of a

$6-$story steel frame office. bullding. Using the plan as an underlay, draw the floor. framing plan, and provide the preliminary sizes of W$-$shape $($primary and secondary$)$ beame and columne.

Note: Refer to Chapter $16$ and Appendbx B in the toxt.
