Question: 1 . ( 2 5 pts ) Determine the reaction force at support ( mathbf { C } ) in the bent

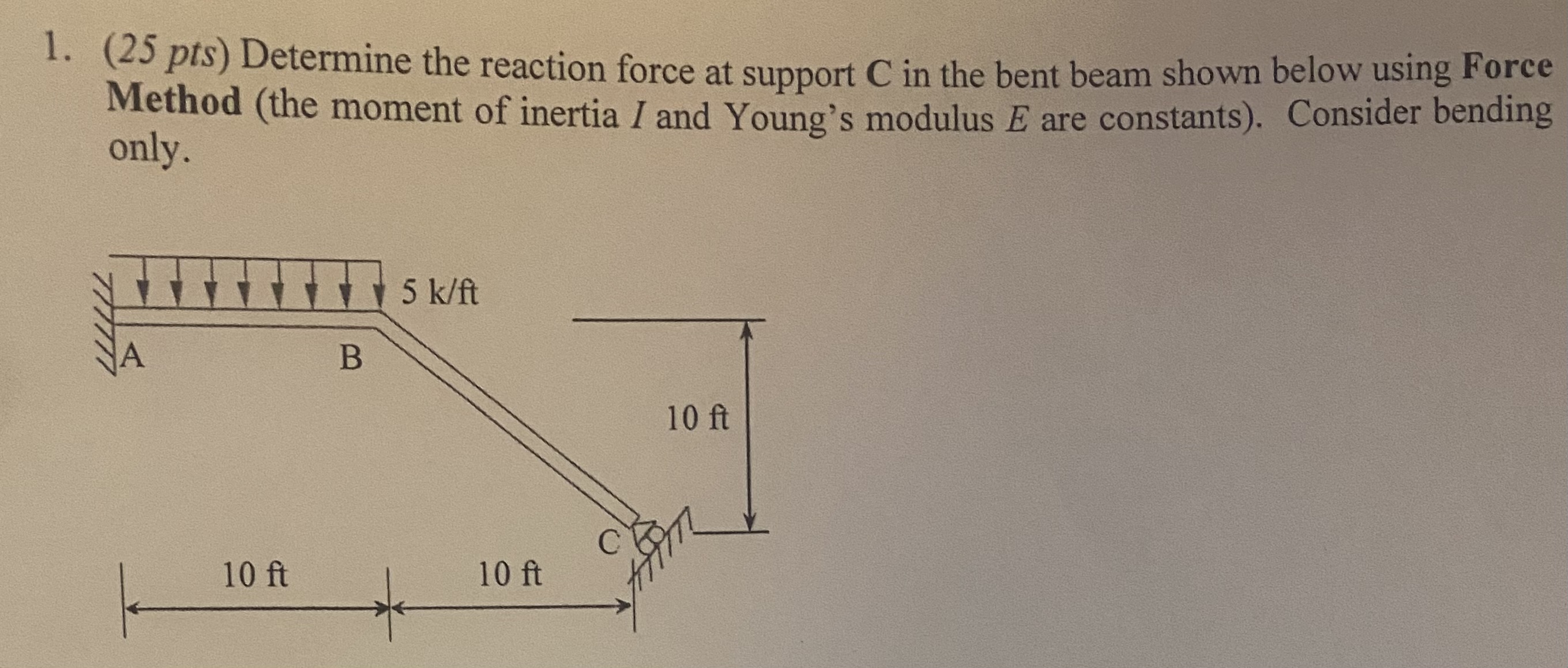

1.(25 pts) Determine the reaction force at support \(\mathbf{C}\) in the bent beam shown below using Force Method (the moment of inertia \( I \) and Young's modulus \( E \) are constants). Consider bending only.
1 . ( 2 5 pts ) Determine the reaction force at

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
