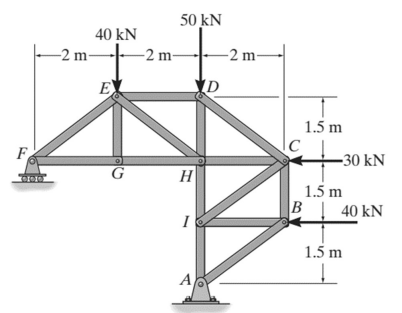

Question: 1 2 : Determine the force in members EG , CH , and HI using method of joints. State whether each member is in tension

12: Determine the force in members EG, CH, and HI using method of joints. State whether each member is in tension or compression. Complete fbd.
1 2 : Determine the force in members EG , CH ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

3 : Find the force in members BC , DI , and HI using method of joints. State whether each member is in tension or compression. Complete fbd .

Q:

Determine the force in each member of the truss by using method of joints and state whether the force is tension or compression. Determine the force in members C D , C H , and GH by using method of...

Q:

1 0 : Determine the force in members JL , BE , and CD using method of joints. State whether each member is in tension or compression. Complete fbd .

Q:

1 9 : Determine the force in members CD , CM , and LM using method of sections. State whether each member is in tension or compression. Complete fbd .

Q:

Using the method of joints, determine the force in members AB and BD of the truss shown. State whether each member is in tension or compression.

Q:

Can someone help me solve this problem? I Don't know how to start this. thank you 2. Determine the forces in members EG, GH, and HI of the truss shown below USING ONLY THE METHOD OF SECTIONS. Next to...

Q:

bec 2-STATICS OF RIGID BODIES PROBLEMS: 1. Determine the force in each member of the Howe roof truss shown. State whether each member is in tension or compression. Limit your answers to two decimal...

Q:

Trusses 1. Determine the force in each member of the truss and indicate if the member is in tension or compression 20 400 N 0.6 m 0.8 m T17 0.8 m 77 Trusses 3. For the sign truss shown below: a. Use...

Q:

Question 1 : Trusses a ) By inspection identify any zero member forces in the truss with reasoning. b ) Using the Method of Joints, determine the force in members AB , AH , GH & BH . State if the...

Q:

1 . Use the method of joints to solve for the force in each member of the truss below. State whether the forces are in tension or compression. Note: You will have to solve systems of 2 equations with...
