Question: 1 2 Sec. 1 2 . 4 1 2 - 1 3 . Determine the moment at B , then draw the moment diagram for

12
Sec. 12.4

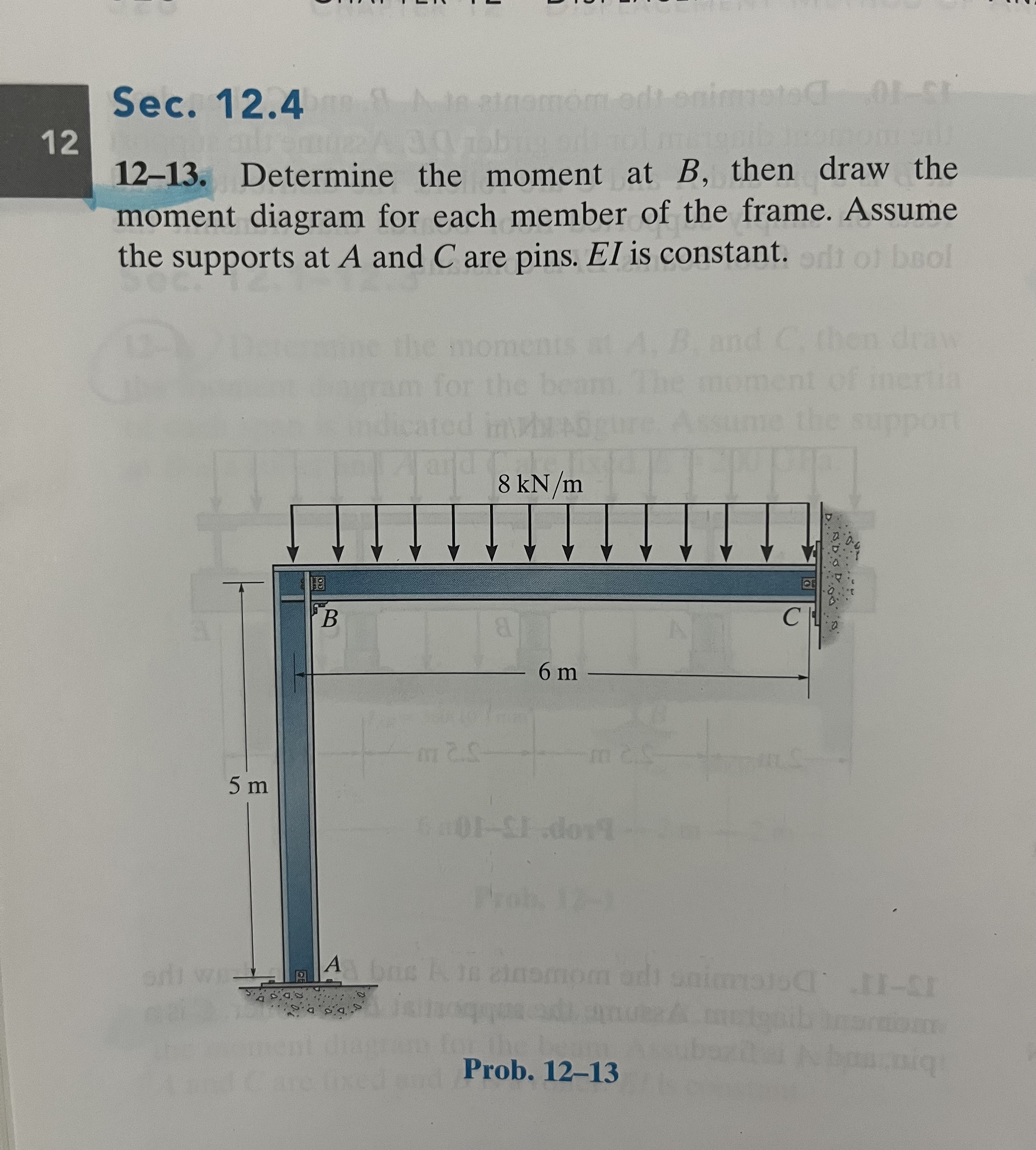

12-13. Determine the moment at B, then draw the moment diagram for each member of the frame. Assume the supports at A and C are pins. EI is constant.
Prob. 12-13
1 2 Sec. 1 2 . 4 1 2 - 1 3 . Determine the moment

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
