Question: 1 . 3 Two solid cylindrical rods ( 1 ) and ( 2 ) are joined together at flange B and loaded, as shown in

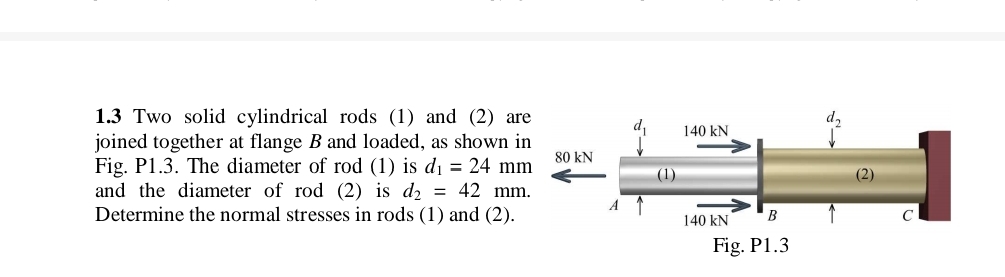

1.3 Two solid cylindrical rods (1) and (2) are joined together at flange B and loaded, as shown in Fig. P1.3. The diameter of rod (1) is d1=24mm and the diameter of rod(2) is d2=42mm. Determine the normal stresses in rods (1) and (2).
1 . 3 Two solid cylindrical rods ( 1 ) and ( 2 )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
