Question: 1 . 3 Two solid cylindrical rods A B and B C are welded together at B and loaded as shown. Knowing that P =

1.3 Two solid cylindrical rods AB and BC are welded together at B and
loaded as shown. Knowing that P=10kips, find the average normal
stress at the midsection of (a)rodAB,(b)rodBC.

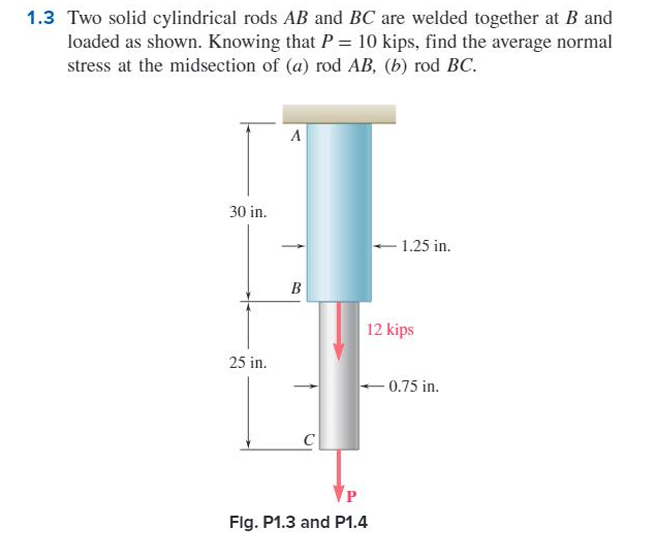

Flg. P1.3 and P1.4
1 . 3 Two solid cylindrical rods A B and B C are

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
