Question: 1. [30 POINTS] (a) Find the equivalent capacitance a between points a and b for C C1 the group of capacitors connected as shown in

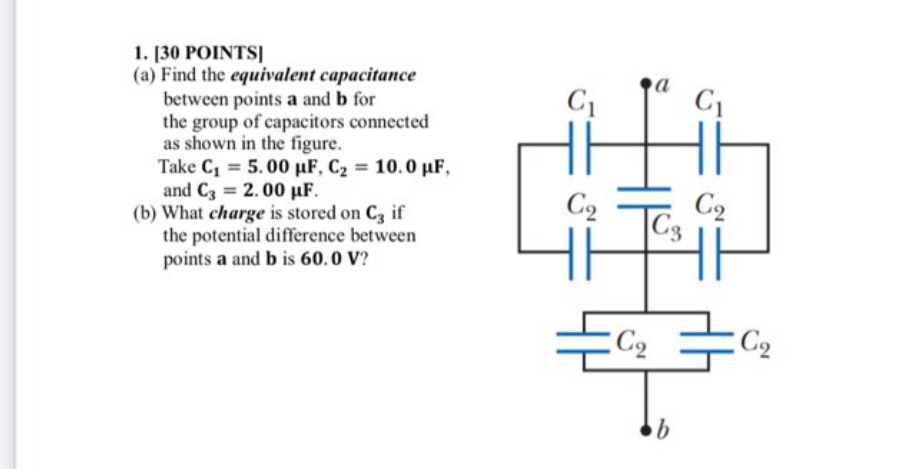

1. [30 POINTS] (a) Find the equivalent capacitance a between points a and b for C C1 the group of capacitors connected as shown in the figure. Take C1 = 5. 00 HF, C2 = 10.0 HF, and C3 = 2. 00 HF. (b) What charge is stored on C3 if Co the potential difference between C3 points a and b is 60.0 V? C2 C2 b

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

Consider the following figure. a C C2 (a) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure if C = 6.00 F, C = 12.00 F, and C3 = 3.00...

Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in Figure P26.27. Take C1 = 5.00 μF, C2 = 10.0 μF, and C3 = 2.00 μF. Co C2 Go

4. [-/4 Points] DETAILS Consider the following figure. G1 pa C2 C2 TC3 (a) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure above....

Consider the following figure. C C C C C C b (a) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure above. Take C = 4.00 F, C = 14.0...

Consider the following figure. C2 C2 (a) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure above. Take C, = 8.00 UF, C2 = 15.0 JF,...

Practice Another Consider the following figure. ( i ) ( a ) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure above. Take C 1 = 3 . 0...

Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in figure if C 1 = 5.00 ?F, C 2 = 10.0 ?F, and C 3 = 2.00 ?F. Cs C2 C2 H Cg

Help me please BALITE FILE Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in Figure below , Take C) = 5.00 AF, C2 = 10.0 pF, and Cs = 2.00 pF....

Consider the following figure. a : C2 C2 (a) Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in the figure if Cj = 4.00 UF, C2 = 12.00 UF, and C3...

Find the equivalent capacitance between points a and b for the group of capacitors connected as shown in FIGURE 1 if C 1 = C 2 = 5 . 0 0 F , C 3 = C 4 = C 6 = C 7 = 1 0 . 0 0 F and C 5 = 2 . 0 0 F ....
