Question: 1 - 4 2 . Determine the average shear stress developed in pin A the truss. A horizontal force of P = 4 0 k

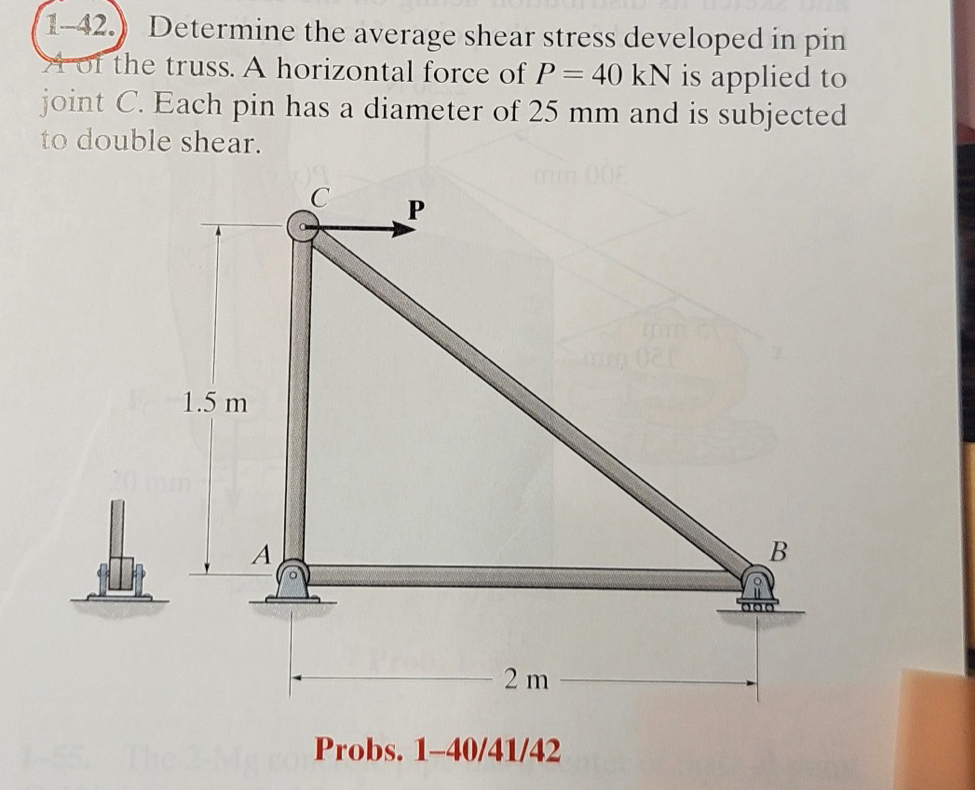

1-42. Determine the average shear stress developed in pin A the truss. A horizontal force of P=40kN is applied to joint C. Each pin has a diameter of 25 mm and is subjected
Probs. 1-40/41/42
1 - 4 2 . Determine the average shear stress

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

The 180-kg bucket is suspended from end E of the frame as shown in (Figure 1). The diameters of the pins at A and D are 6 mm and 10 mm, respectively. Figure -0.6 m 0.6 m 0.6 m 30 B 1.2 m D E 1 of 1 4...

Q:

3- Let the density of the pyramid material be p = 2000 kg/m. Determine the average normal stress at a cross section located at x measured from the apex. Express the stress as a function of x. Assume...

Q:

QUESTION 1: A vertical force of P = 1500 N is applied to the bell crank. a-) Determine the average normal stress developed in the 10-mm diameter rod CD, b-) Determine the average shear stress...

Q:

1- Determine the maximum magnitude P of the load the beam will support if the average shear stress in each pin is not to allowed to exceed 60 MPa. All pins are subjected to double shear as shown, and...

Q:

The clamp shown in the figure is used to support a load hanging from the lower flange of a steel beam. The clamp consists of two arms (A and B) joined by a pin at C. The pin has diameter d = 12 mm....

Q:

The structure shown below consists of a rectangular frame with a taut rope connecting joint D to point E. The rope is made of coarse horsehair and has a Young's Modulus E = 5 GPa. It is well-made and...

Q:

During a tension test, the wooden specimen is subjected to an average normal stress of 2 ksi. Determine the axial force P applied to the specimen. Also, find the average shear stress developed along...

Q:

Sheer =? shear 1. Determine the average shear stress in the 20-mm diameter pin at A and the 30-mm diameter pin at B that support the beam shown. The pin at A is in double shear and the pin at B is in...

Q:

MECE2420 Solid Mechanics Q1. The beam AB is fixed to the wall and has a uniform weight of 1200 N/m. If the trolley supports a load of 6000 N, determine the resultant internal loadings acting on the...

Q:

Determine the maximum average shear stress in pin A of the truss. A horizontal force of P = 40 kN is applied to joint C. Each pin has a diameter of 25 mm and is subjected to double shear. 1.5 m A 2 m
