Question: 1 4 - 3 . Determine the stiffness matrix K for the truss. A E in constant. * 1 4 - 4 . Determine the

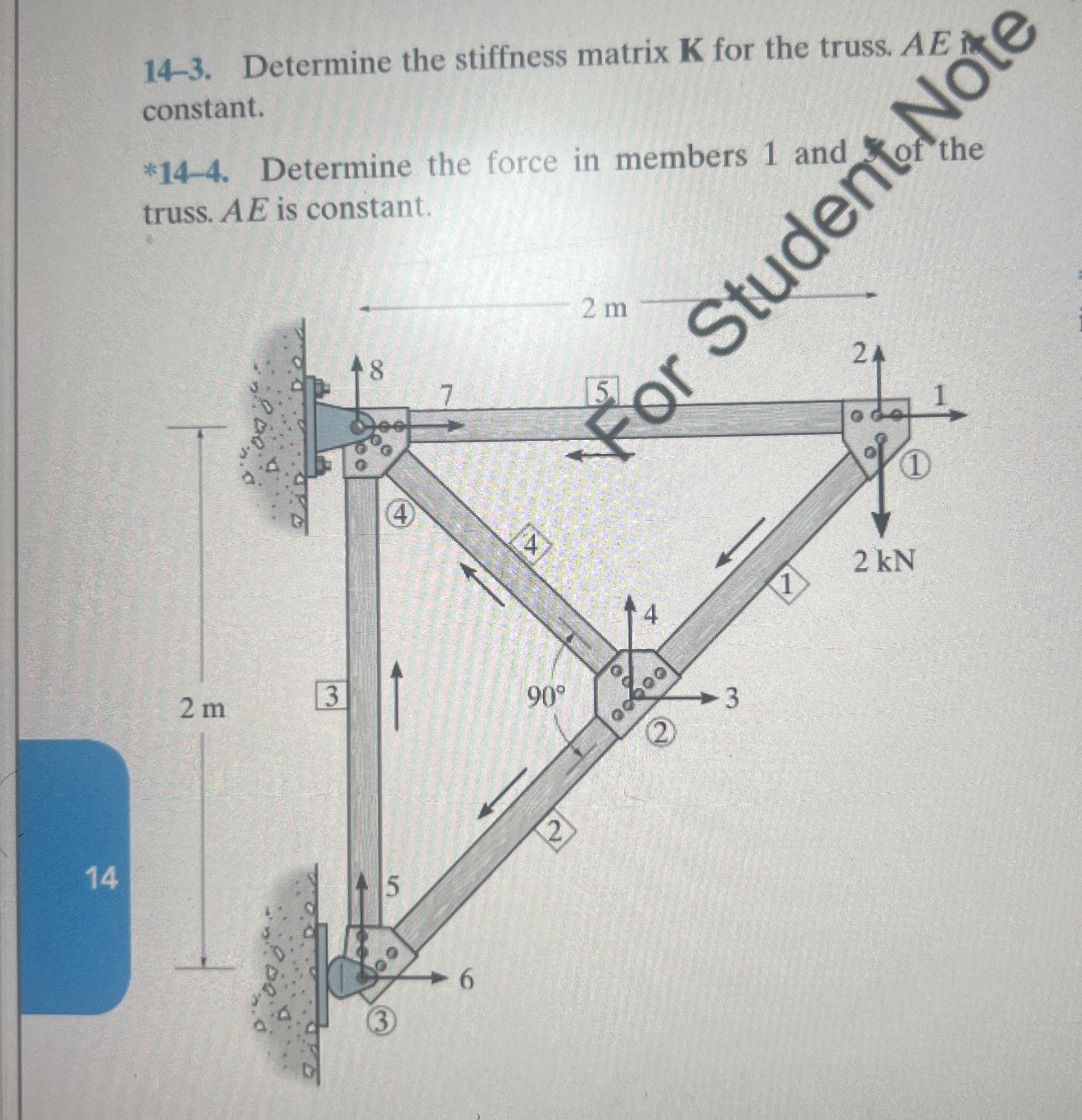

14-3. Determine the stiffness matrix K for the truss. AE in constant.
*14-4. Determine the force in members 1 and z of the truss. AE is constant.
14
1 4 - 3 . Determine the stiffness matrix K for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!
