Question: 1 . ( 5 0 pts ) Determine the force in each truss member of the portal frame using the approximate method. Also, find the

1 . (50

pts

)

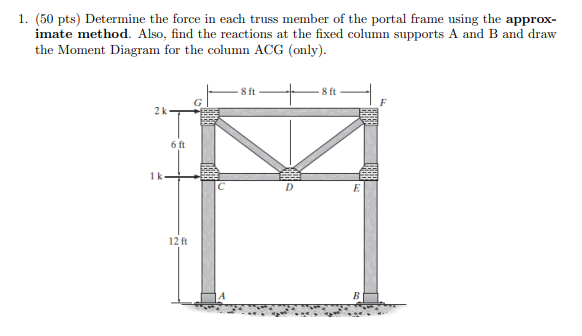

Determine the force in each truss member of the portal frame using the approximate method. Also, find the reactions at the fixed column supports A and B and draw the Moment Diagram for the column ACG

(

only

) .

1 . ( 5 0 pts ) Determine the force in each truss

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Instructor: Ameh Fioklou, Ph.D., P.E. 1 of 7 CE 310 Elementary Structural Analysis Final Project Computer Applications Fall 2021 The objective of this project is to get you familiar with structural...

Determine (approximately) the force in each truss member of the portal frame. Also find the reactions at the fixed column supports A and B. Assume all members of the truss to be pin connected at...

Determine (approximately) the force in each truss member of the portal frame. Also find the reactions at the fixed column supports A and B.if the supports at A and Bare pinned instead of fixed. 1.5...
