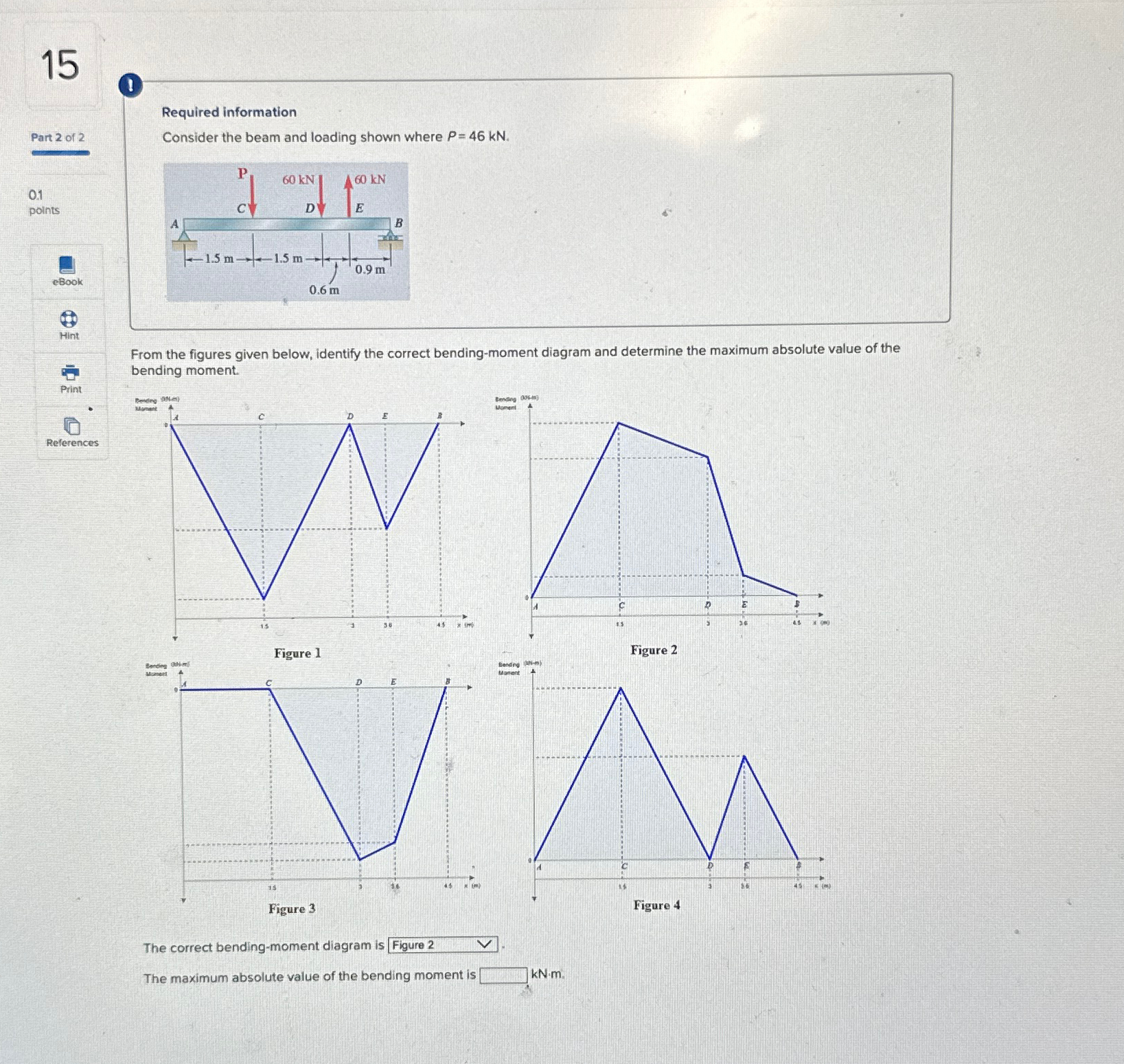

Consider the beam and loading shown where $P=46kN.$

Part $2$ of $2$

$0\mathrm{.}1$

points

$E_{\text{e}\text{b}\text{o}\text{o}\text{k}}$

From the figures given below, identify the correct bending$-$moment diagram and determine the maximum absolute value of the bending moment.

Figure $1$

The correct bending$-$moment diagram is

The maximum absolute value of the bending moment is $kN*m.$
