Question: 1 5 . 3 Beam Deflection v ( x ) using INTEGRATION Assuming E l is constant along the beam. ( a ) Determine the

15.3 Beam Deflection v(x) using INTEGRATION
Assuming El is constant along the beam.

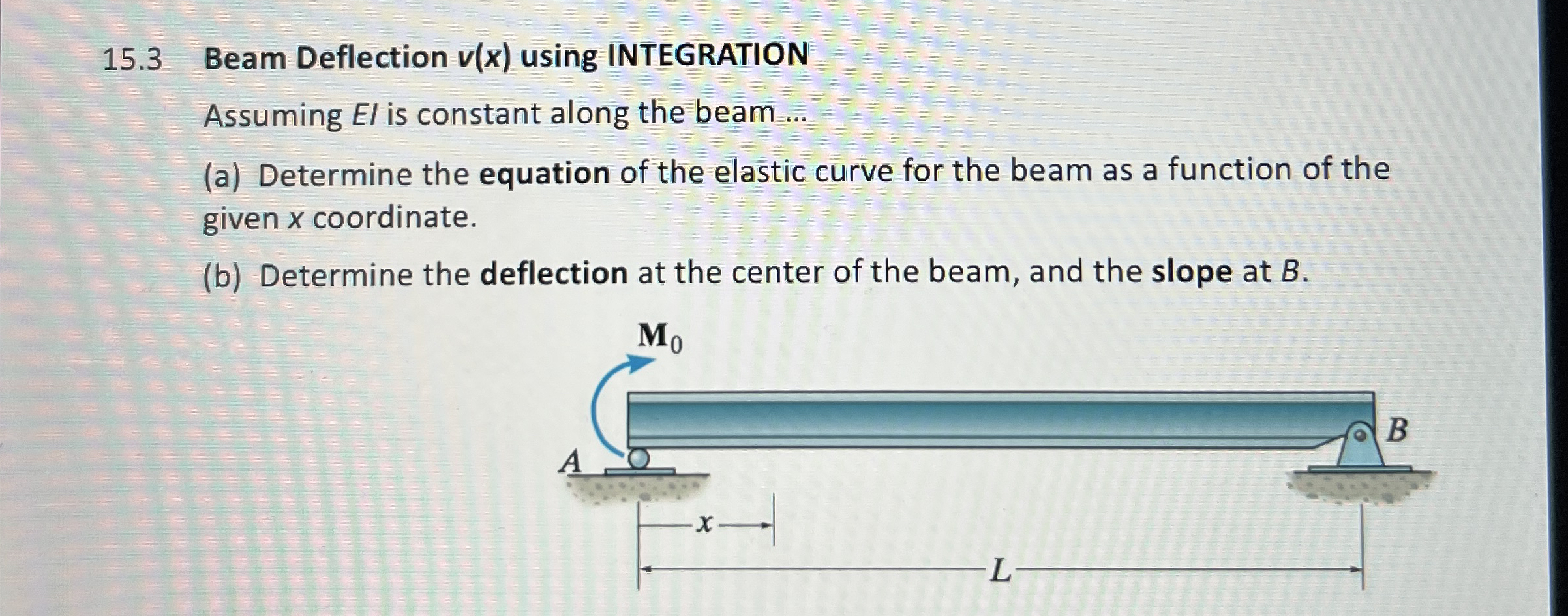

(a) Determine the equation of the elastic curve for the beam as a function of the given x coordinate.
(b) Determine the deflection at the center of the beam, and the slope at B.
1 5 . 3 Beam Deflection v ( x ) using INTEGRATION

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
