Question: 1 5 - 4 ) A + 2 Precent grade intersects with a - 1 percent grade at station ( 5 3 5 + 2

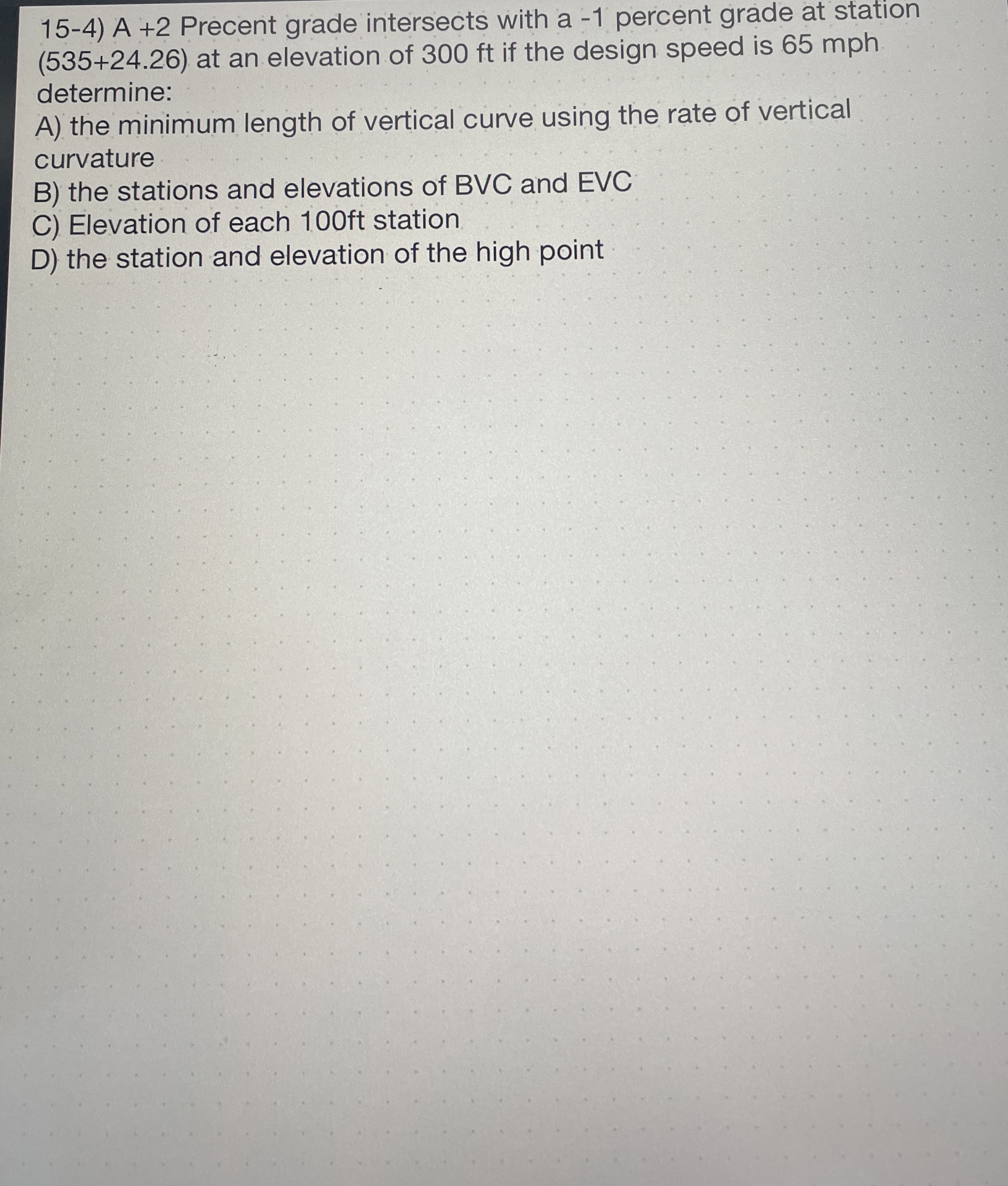

15-4) A +2 Precent grade intersects with a -1 percent grade at station
(535+24.26) at an elevation of 300 ft if the design speed is 65 mph
determine:
A) the minimum length of vertical curve using the rate of vertical
curvature
B) the stations and elevations of BVC and EVC
C) Elevation of each 100 ft station
D) the station and elevation of the high point
1 5 - 4 ) A + 2 Precent grade intersects with a -
