Question: ( 1 5 points ) For the loaded beam shown, use method of sections to derive the shear force and bending moment in section C

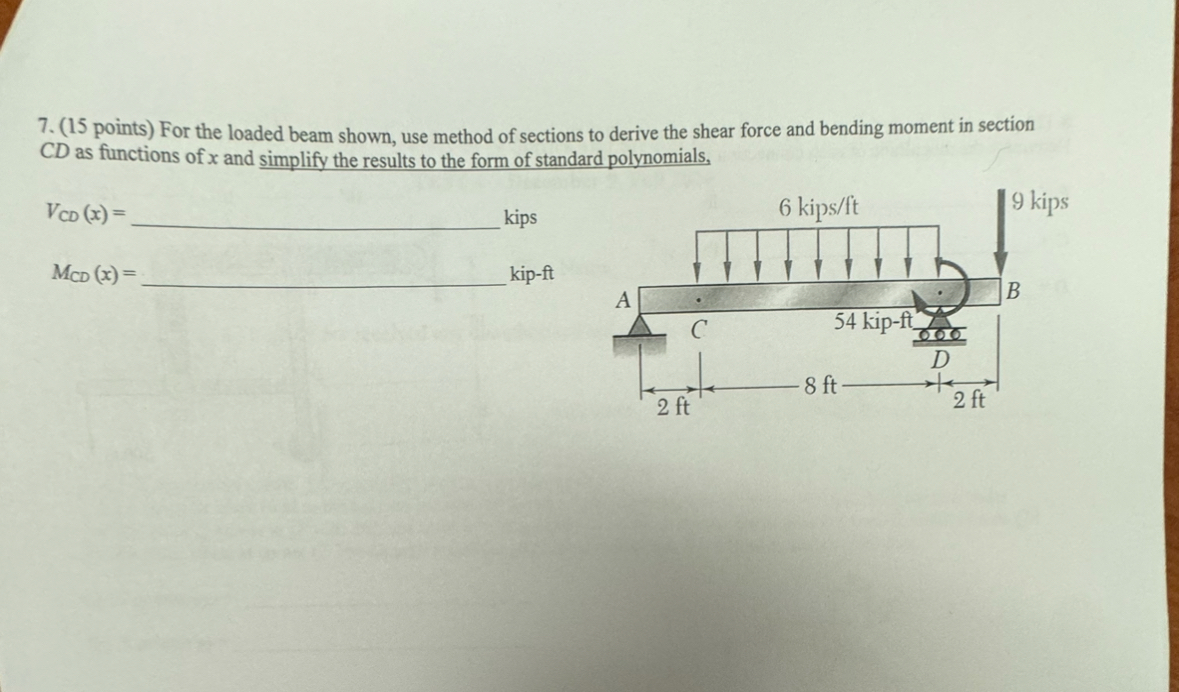

(15 points) For the loaded beam shown, use method of sections to derive the shear force and bending moment in section CD as functions of x and simplify the results to the form of standard polynomials,
VCD(x)= kips
MCD(x)= kip-ft
( 1 5 points ) For the loaded beam shown, use

Step by Step Solution

There are 3 Steps involved in it
