Question: , 1 5 pts . For the circuit shown determine the voltage across R 2 in the s domain. There is no need to do

, 15

pts

.

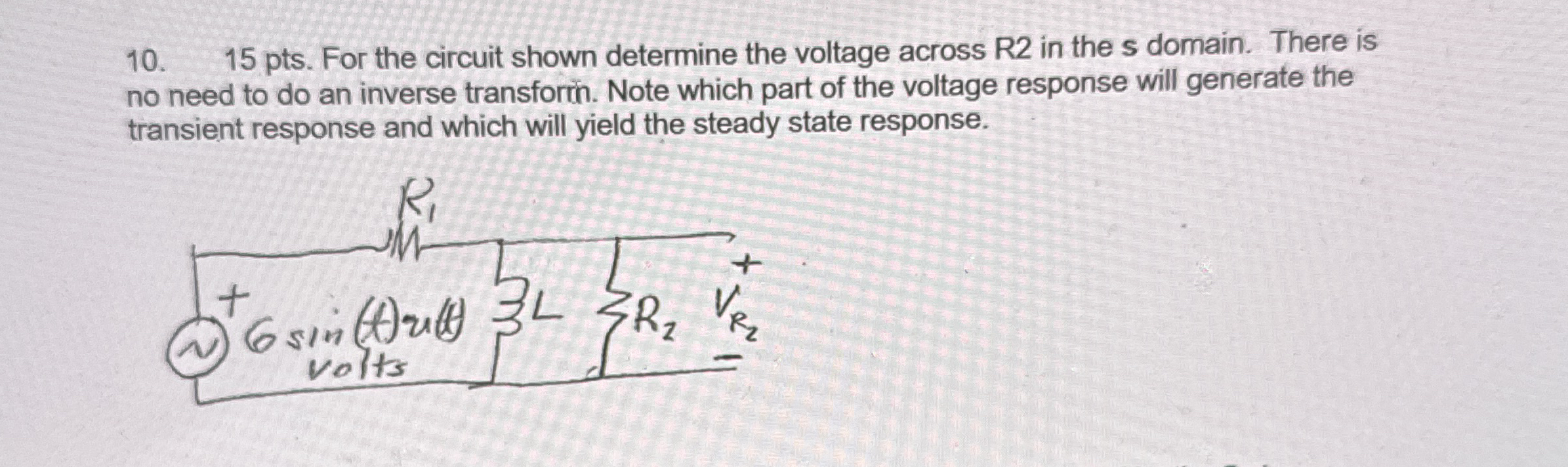

For the circuit shown determine the voltage across R

2

in the s domain. There is no need to do an inverse transforin. Note which part of the voltage response will generate the transient response and which will yield the steady state response.

, 1 5 pts . For the circuit shown determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
