Question: * 1 6 - 1 1 2 . Determine the angular acceleration of link C D if link A B has the angular velocity and

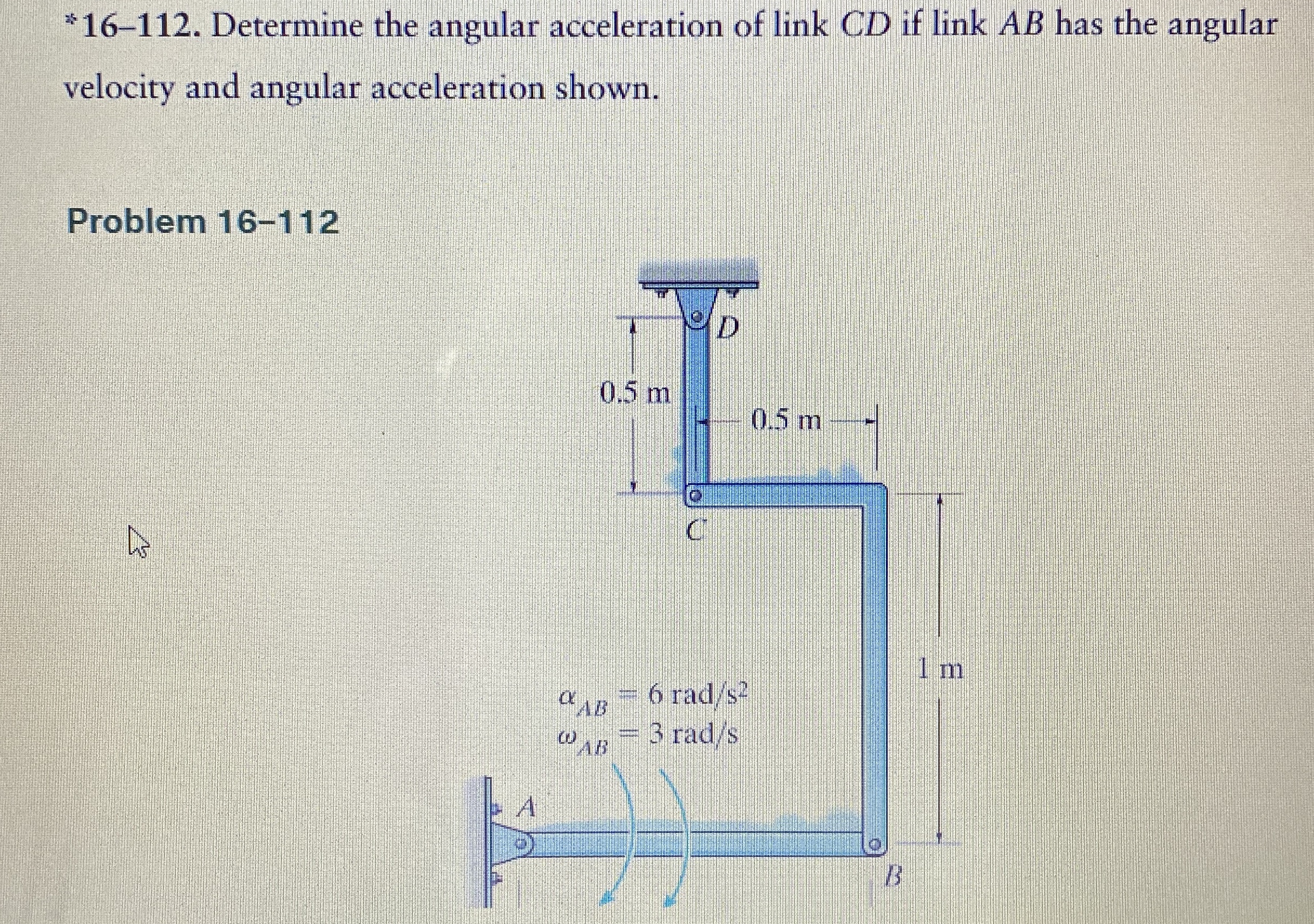

*16-112. Determine the angular acceleration of link CD if link AB has the angular
velocity and angular acceleration shown.
Problem 16-112
AB=6rads2
AB=3rads
* 1 6 - 1 1 2 . Determine the angular

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
