Question: 1 6 - 5 1 . Determine the vertical deflection and slope at the end ( A ) of the bracket. Assume that

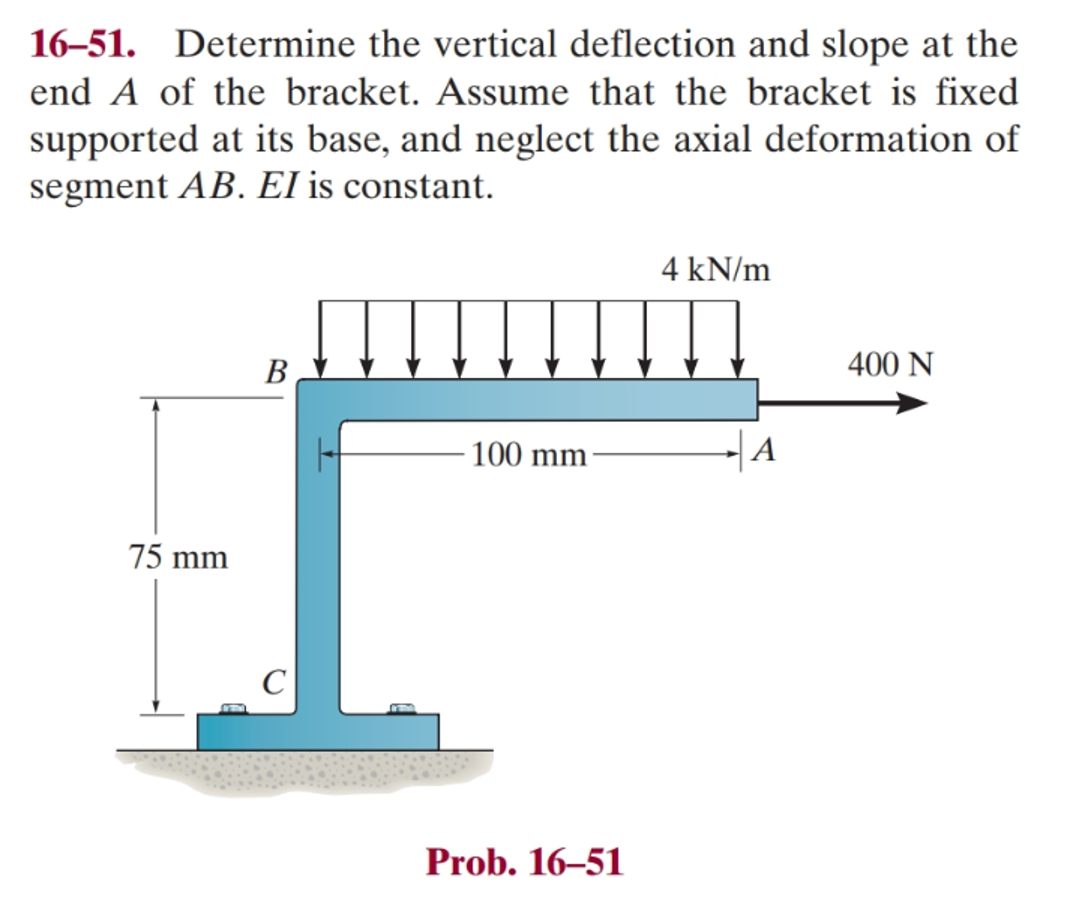

16-51. Determine the vertical deflection and slope at the end \( A \) of the bracket. Assume that the bracket is fixed supported at its base, and neglect the axial deformation of segment \( A B \).\( E I \) is constant.
Prob. 16-51
