$17.(20\%)$ A TCP session has been previously established between a client and server. Assume the following:

Client

o total of $1600$B $($B$=$bytes$)$ are to be sent to the server

o Nagle and delayed acknowledgment $(500$msec$)$ in effect

o At time$=0$ sec$,200$B is initially available to be sent

o At time$=2$ sec$,$ another $1400$B is available to be sent

o sequence # of first byte $=3000,$ rwnd $=2000$B$,$ cwnd $=10,000$B$,$ MSS $=1000$B

Server

o no data to be sent

o Nagle and delayed acknowledgment $(500$msec$)$ in effect

o sequence # of first byte $=1000,$ rwnd $=2000$B$,$ cwnd $=10,000$B$,$ MSS $=1000$B

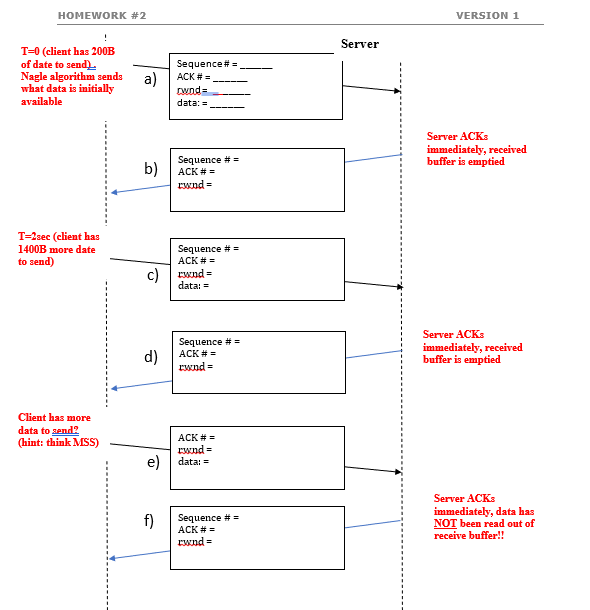

a$)$ For the segment in part a$)$ of the diagram, provide the value of the ACK #

ACK # $=$

b$)$ For the segment in part b$)$ of the diagram, provide the values for sequence, ACK, rwnd$,$ and data range

Sequence # $=$

ACK # $=$

rwnd $=$

data range $(1$st and last sequence #$\text{'}$s$)$: $=$

c$)$ For the segment in part c$)$ of the diagram, provide for the values for the following: $($data range is not relevant since this is an ACK segment and data is not piggybacking$).$

Sequence # $=$

ACK # $=$

rwnd $=$

data range $(1$st and last sequence #$$s$)$: $=$

d$)$ For the segment in part d$)$ of the diagram, provide for the following:

Sequence # $=$

ACK # $=$

rwnd $=$

e$)$ For the segment in part e$)$ of the diagram, provide the values for the following:

Sequence # $=$

ACK # $=$

rwnd $=$

data range $(1$st and last sequence #$$s$)$: $=$

f$)$ For the segment in part f$)$ of the diagram, provide for the following:

Sequence # $=$

ACK # $=$

rwnd $=$
