Question: 1 7 - 5 4 . The two uniform 4 - k g bars D C and E F are fixed ( welded ) together

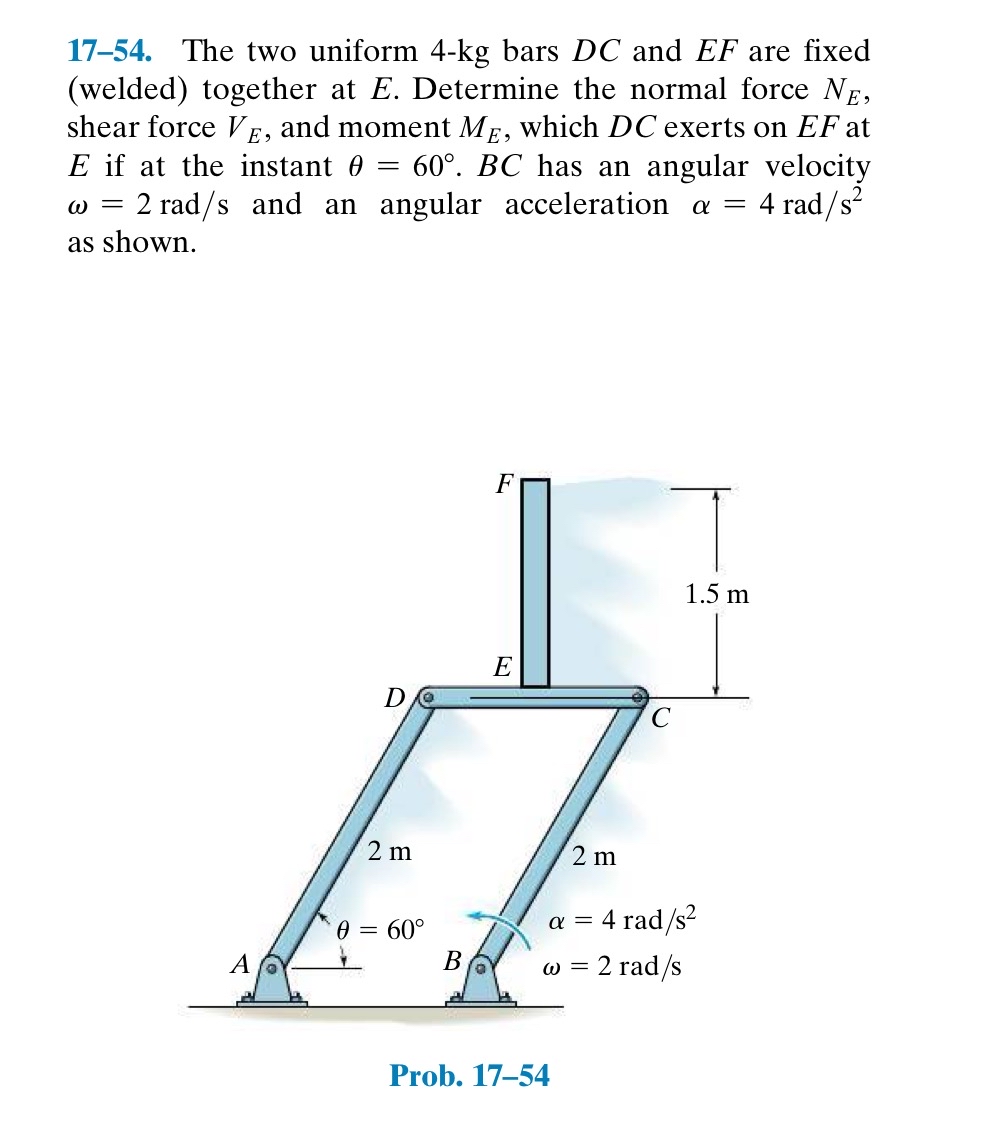

17-54. The two uniform 4-kg bars DC and EF are fixed (welded) together at E. Determine the normal force NE, shear force VE, and moment ME, which DC exerts on EF at E if at the instant =60.BC has an angular velocity =2rads and an angular acceleration =4rads2 as shown.
Prob. 17-54
1 7 - 5 4 . The two uniform 4 - k g bars D C and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
