Problem $07\mathrm{.}091-$ DEPENDENT MULTI$-$PART PROBLEM $-$ ASSIGN ALL PARTS

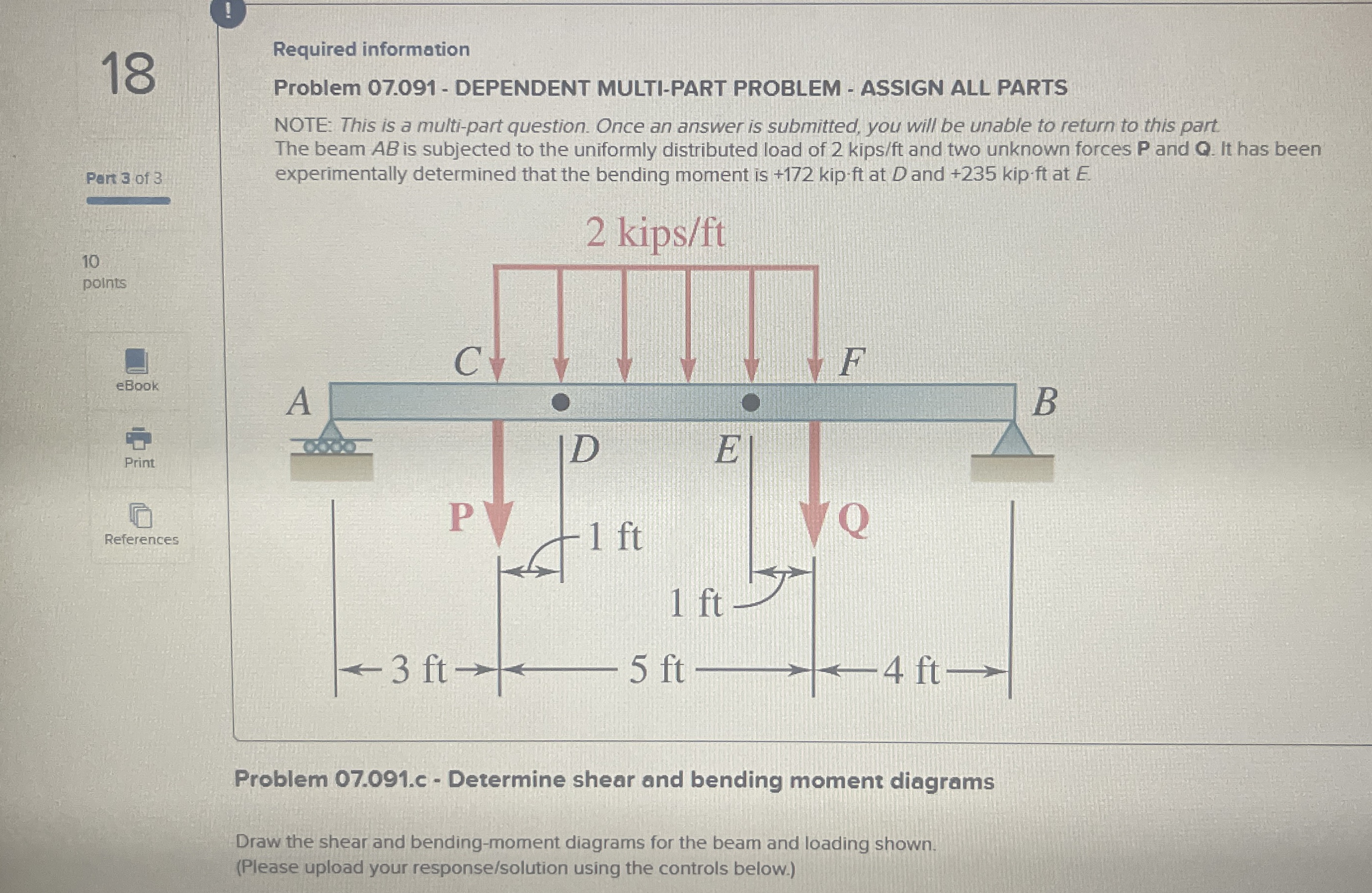

NOTE: This is a multi$-$part question. Once an answer is submitted, you will be unable to return to this part The beam $AB$ is subjected to the uniformly distributed load of $2$ kips$/$ft and two unknown forces $P$ and $Q.$ It has been

Pert $3$ of $3$

experimentally determined that the bending moment is $+172$ kip ft at $D$ and $+235$ kip. ft at $E.$

$10$

points

References

Problem $07\mathrm{.}091.$c $-$ Determine shear and bending moment diagrams

Draw the shear and bending$-$moment diagrams for the beam and loading shown. $($Please upload your response$/$solution using the controls below.$)$
