Question: 1 A . 0 . 3 m diam pipe through which water flows at the rate of 0 . 2 8 2 m 3 s

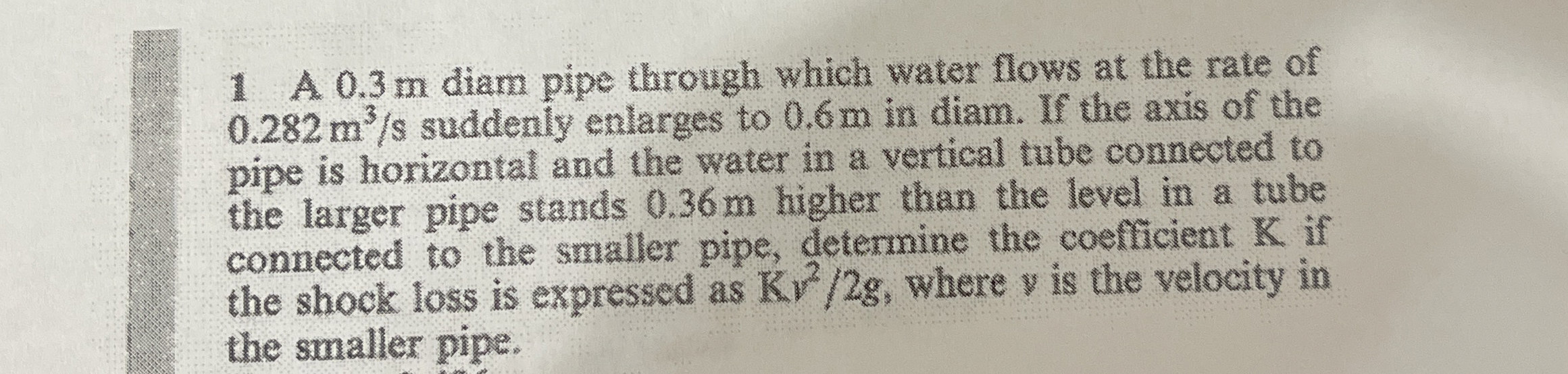

1 A.0.3 m diam pipe through which water flows at the rate of 0.282m3s suddenly enlarges to 0.6 m in diam. If the axis of the pipe is horizontal and the water in a vertical tube connected to the larger pipe stands 0.36 m higher than the level in a tube connected to the smaller pipe, determine the coefficient K if the shock loss is expressed as K22g, where v is the velocity in the smaller pipe.
1 A . 0 . 3 m diam pipe through which water flows
