Question: 1 A) Are Circuits 3 And 3a The Same? Explain Using Ideas Developed In This Lab. B) Circuit 3 Labels Point R. Put A Label

1 A) Are Circuits 3 And 3a The Same? Explain Using Ideas Developed In This Lab. B) Circuit 3 Labels Point R. Put A Label For Point R On The Diagram For Circuit 3a.

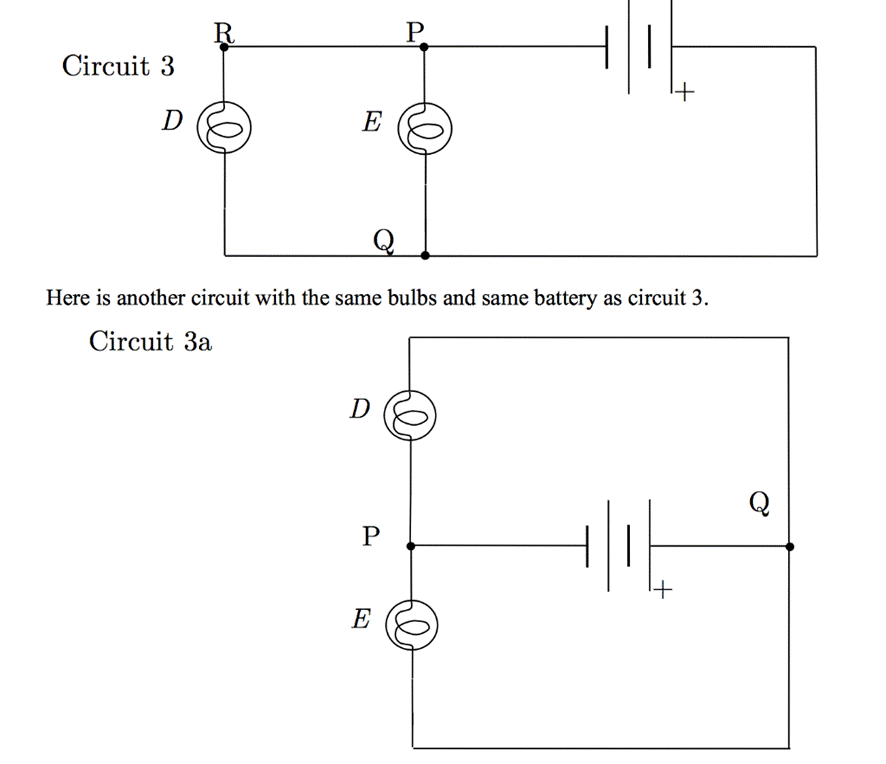

PCircuit 3DEHere is another circuit with the same bulbs and same battery as circuit 3.Circuit 3aDP=E

R Circuit 3 P. D E Here is another circuit with the same bulbs and same battery as circuit 3. Circuit 3a D Q P E

Step by Step Solution

★★★★★

3.50 Rating (153 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Circuit 3 circuit 3a P Both ciruit are sameifor same bulbs ... View full answer
