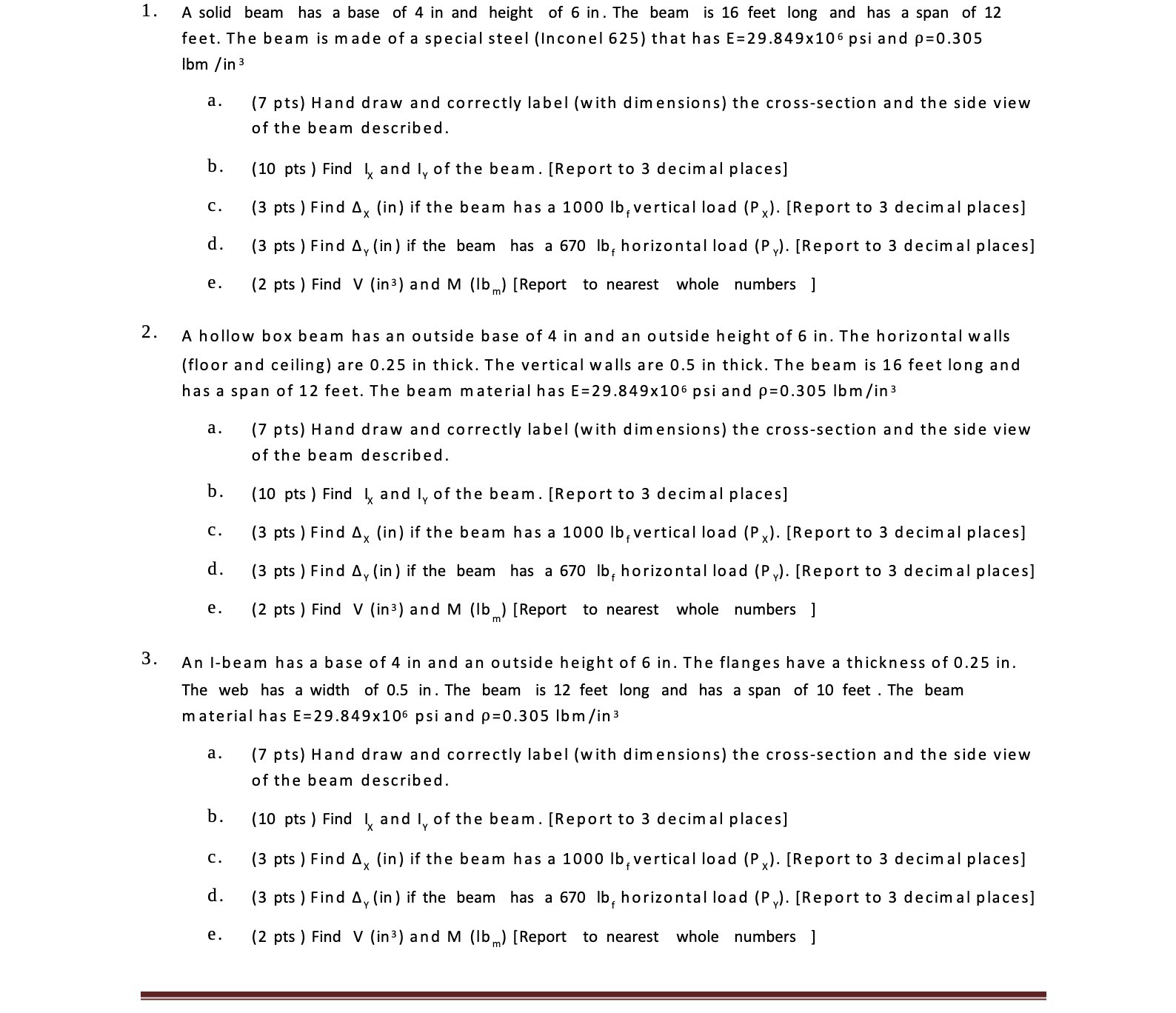

1. A solid beam has a base of 4 in and height of 6 in. The beam is 16 feet long and has a span of 12 feet. The beam is made of a special steel (Inconel 625) that has E=29.849x106 psi and p=0.305 Ibm / in 3 a. (7 pts) Hand draw and correctly label (with dimensions) the cross-section and the side view of the beam described. b . (10 pts ) Find l and ly of the beam. [Report to 3 decimal places] C. (3 pts ) Find Ax (in) if the beam has a 1000 lb, vertical load (Px). [Report to 3 decimal places] d. (3 pts ) Find Ay (in ) if the beam has a 670 lb, horizontal load (Py). [Report to 3 decimal places] e. (2 pts ) Find V (in3) and M (lb,,) [Report to nearest whole numbers ] 2 . A hollow box beam has an outside base of 4 in and an outside height of 6 in. The horizontal walls (floor and ceiling) are 0.25 in thick. The vertical walls are 0.5 in thick. The beam is 16 feet long and has a span of 12 feet. The beam material has E=29.849x106 psi and p=0.305 Ibm/in3 a. (7 pts) Hand draw and correctly label (with dimensions) the cross-section and the side view of the beam described. b . (10 pts ) Find l, and ly of the beam. [Report to 3 decimal places] C . (3 pts ) Find Ax (in) if the beam has a 1000 lb, vertical load (Px). [Report to 3 decimal places] d. (3 pts ) Find Ay (in ) if the beam has a 670 lb, horizontal load (P ). [Report to 3 decimal places] e . (2 pts ) Find V (in3) and M (1b ) [Report to nearest whole numbers ] 3. An I-beam has a base of 4 in and an outside height of 6 in. The flanges have a thickness of 0.25 in. The web has a width of 0.5 in. The beam is 12 feet long and has a span of 10 feet . The beam material has E=29.849x106 psi and p=0.305 Ibm/in3 a. (7 pts) Hand draw and correctly label (with dimensions) the cross-section and the side view of the beam described. b . (10 pts ) Find | and ly of the beam. [Report to 3 decimal places] C. (3 pts ) Find A (in) if the beam has a 1000 lb, vertical load (P,). [Report to 3 decimal places] d. (3 pts ) Find A (in ) if the beam has a 670 lb, horizontal load (Py). [Report to 3 decimal places] e. (2 pts ) Find V (in3) and M (lb,,) [Report to nearest whole numbers ]
