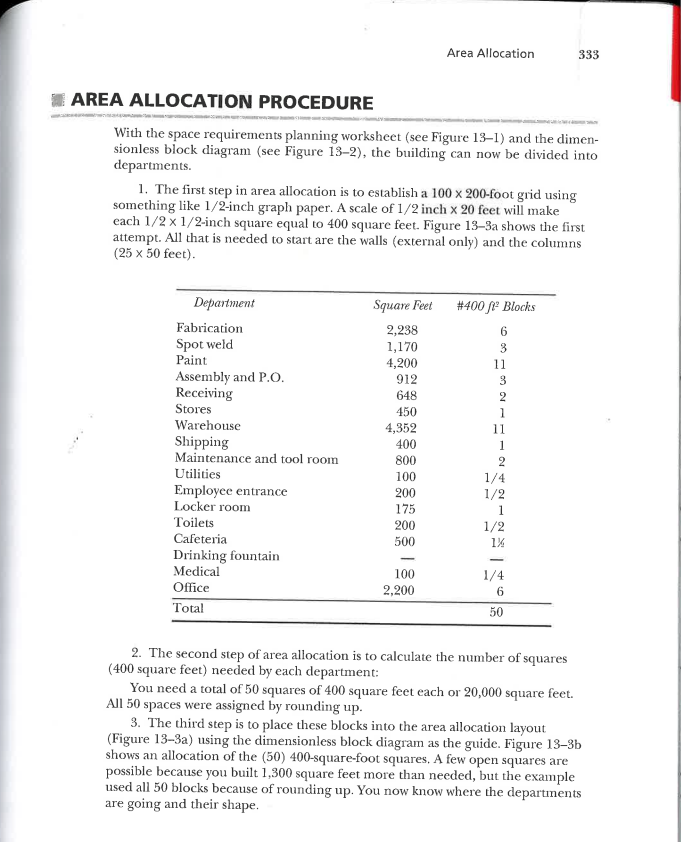

# 1 ) Area Allocation problem like page 333

Establish these Departments

Receiving

Stores

Inspection

Fabrication

Welding

Assembly

Paint

QA

Warehouse

Shipping.

Provide Dimensionless block diagram - USE THE process - I want to see an activity relationship chart and the data to make a dimensionless block diagram. You can decide on the closeness codes for the diagram. Be creative

Provide departments and required areas for each. Be creative. How big is each department. You tell me.

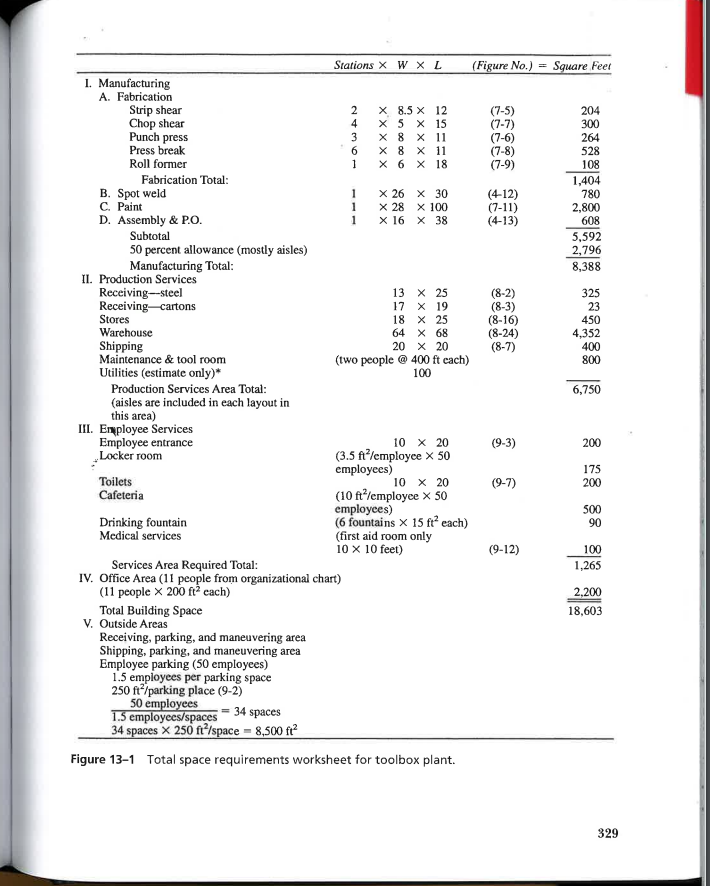

Show a space chart showing your calculations. Like page 329.

Select a building size and dimensions. How did you select that size?

Provide a simple layout for this plant in the building you selected.

# 2 ) Develop a plot plan for Like page 341

Develop a simple plot plan for this factory.

How much space will be needed?

What size lot do you want?

You tell me how many employees there are. Based on this number of employees, what size parking lot is needed? How many spots? Show your calculations or show them graphically.

Stations X W X L (Figure No.) = Square Feet 1. Manufacturing A. Fabrication Strip shear 8.5 x 12 (7-5) 204 Chop shear X 15 (7-7) 300 HOWAN Punch press XXXXX * 11 (7-6) 264 Press break x 11 (7-8) 528 Roll former X 18 (7-9) 108 Fabrication Total: 1,404 B. Spot weld X 26 30 (4-12) 780 C. Paint * 28 XXX
