1. Before TxData can be written TxReady has to be checked how often to see if data can be accepted.

a. Before starting sequence

b. Every line

c. Every char

d. Not necessary because of interrupt

2. For both synchSMs in Text 1, what is the hyperperiod of the tasks?

a. 100

b. 500

c. 1000

d. 1500

3. If an oscilloscope is used to measure the lumped utilization of processing tasks, which line in Text 1 would have code inserted to turn on and off a parallel port bit?

a. Before lines 30

b. Before lines 66

c. Before lines 104

d. Before lines 45

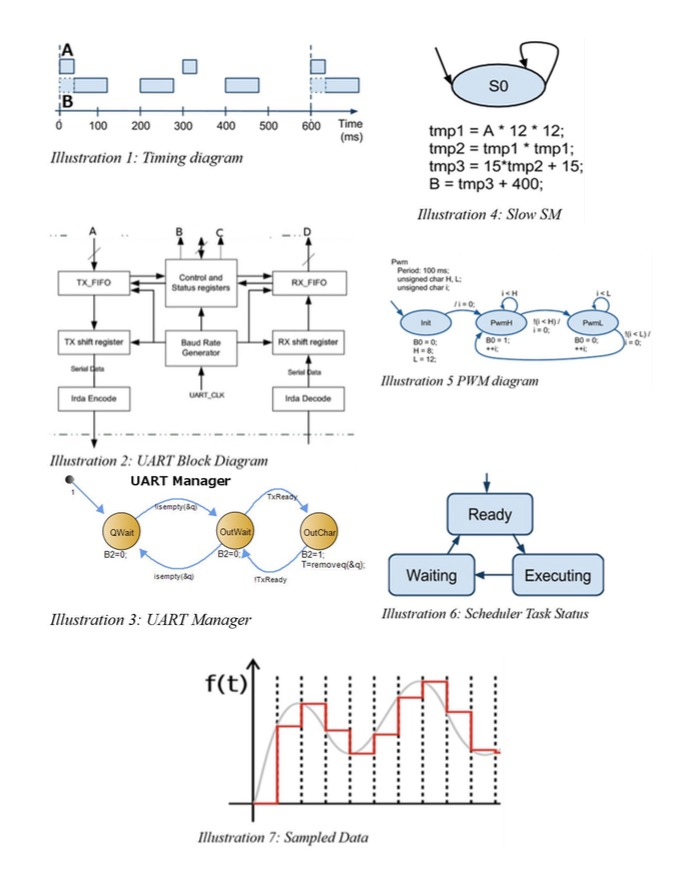

4. In illustration 2 which signal represents TxReady?

a. A

b. B

c. C

d. D

5. In illustration 7 a fundamental concept in the mapping process with an ADC is the loss in precision when mapping analog values to digital numbers is referred to as what?

a. Floating point error

b. Rounding error

c. Frequency truncation

d. Quantization error

6. In illustration 7 the Nyquist frequency determines the maximum frequency component that can be detected with sampling. What is the maximum input frequency that can be detected?

a. One sample per cycle

b. Two samples per cycle

c. Four samples per cycle

d. Half a sample per cycle

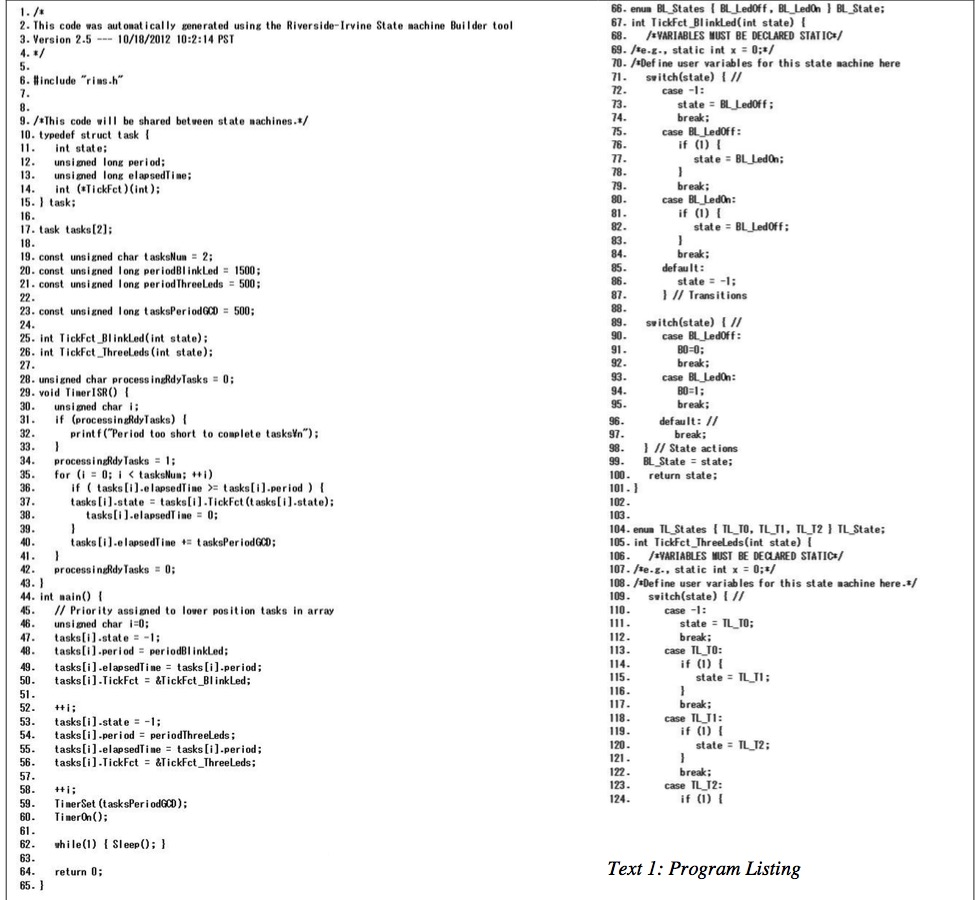

7. In Text 1 Which line would have one task in the Executing Status from illustration 6?

a. 34

b. 37

c. 35

d. 42

8. In Text 1 Which line would have all tasks in the Ready Status from illustration 6?

a. 34

b. 42

c. 36

d. 40
