Question: 1 C . Truss A - H is loaded with a 1 0 0 0 N force as shown and is held in static equilibriulum

1

.

Truss A

-

H is loaded with a

1000

N force as shown and is held in static equilibriulum by a pin support at A and a roller support a

C .

You can use symmetry to determine the reactions at A and

C .

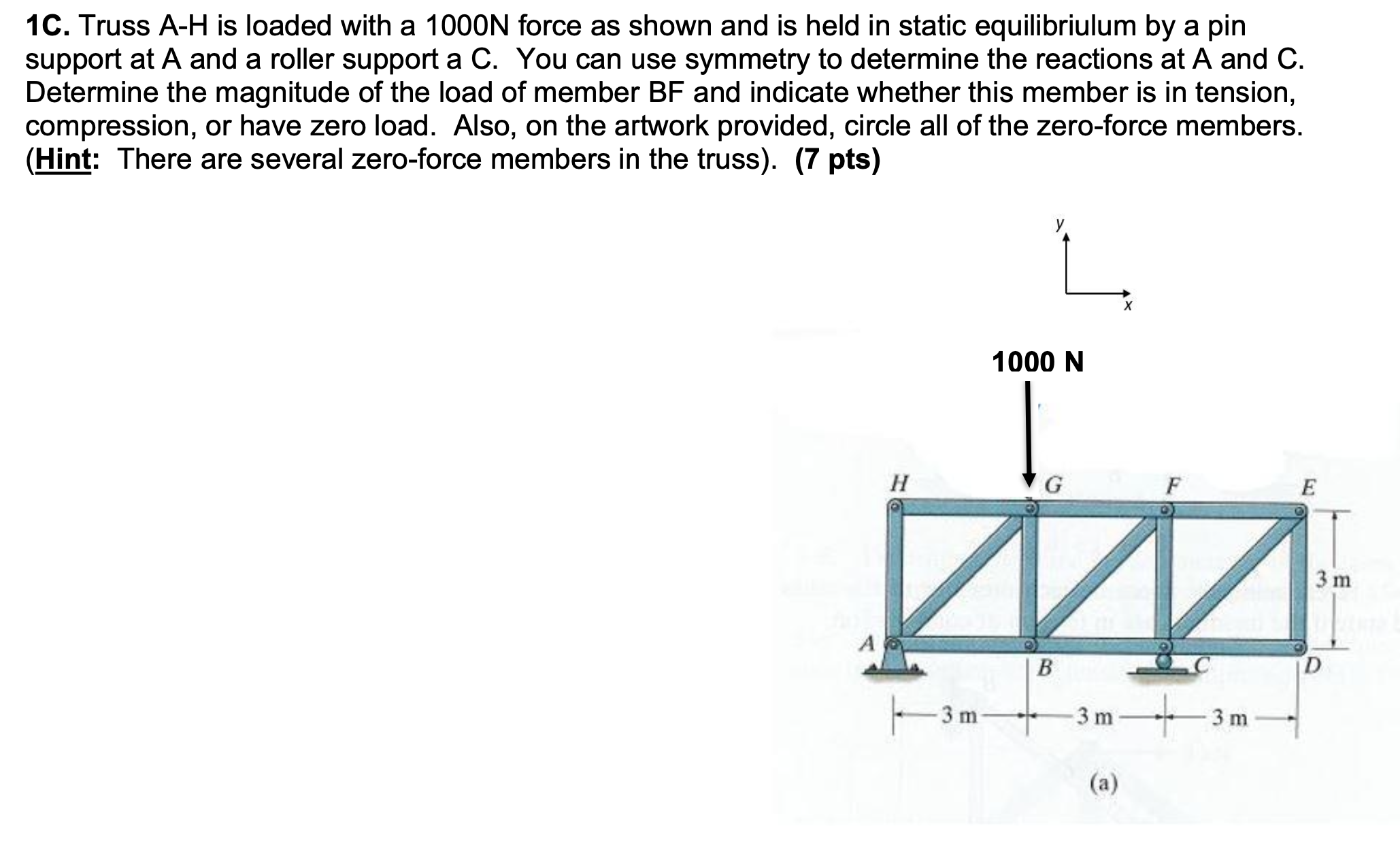

Determine the magnitude of the load of member BF and indicate whether this member is in tension, compression, or have zero load. Also, on the artwork provided, circle all of the zero

-

force members.

(

Hint: There are several zero

-

force members in the truss

) . (7

pts

)

y .

1 C . Truss A - H is loaded with a 1 0 0 0 N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
