Question: 1. Compute the following given the schematic diagram below. a. Total Capacitance (10 pts) b. Voltage, energy and charge on each of the capacitors given

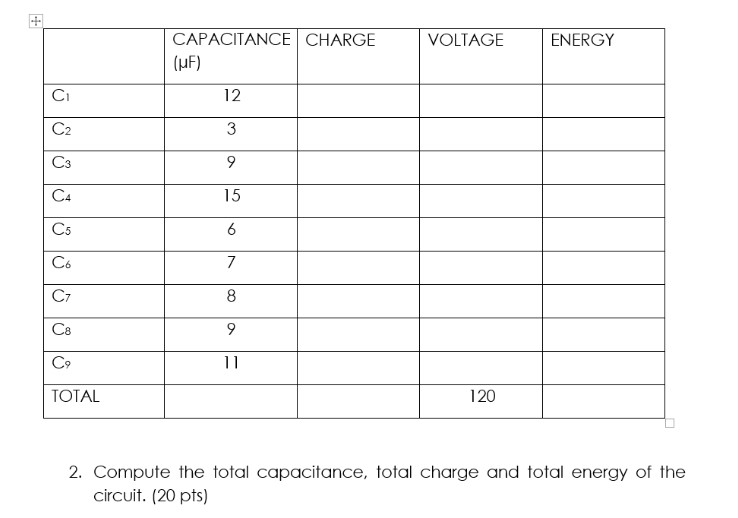

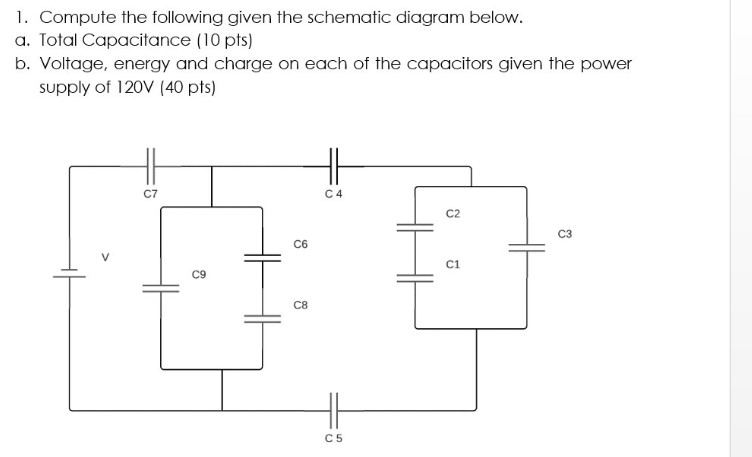

1. Compute the following given the schematic diagram below. a. Total Capacitance (10 pts) b. Voltage, energy and charge on each of the capacitors given the power supply of 120V (40 pts) C7 C4 C2 C3 C6 V C1 C9 C8 C5CAPACITANCE CHARGE VOLTAGE ENERGY [HF] l2 3 l5 6 .7" 2. Compute the Total capacitance; total Charge and total energy of the CI'I'CUH. {20 p15]

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
