Question: ( 1 ) Consider a long slender beam with a length of 1 8 m , a constant Young's Modulus E = 2 0 0

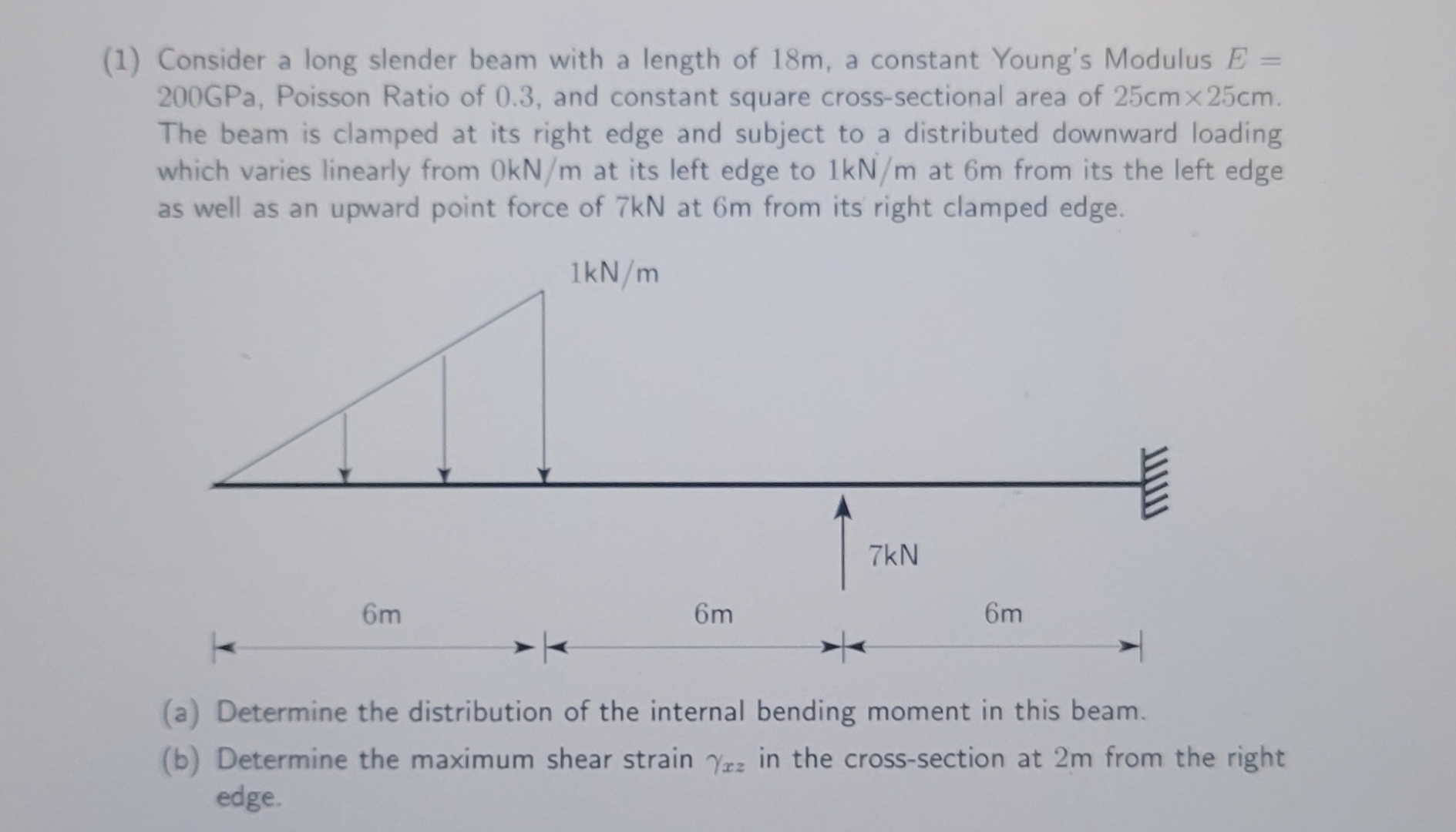

(1) Consider a long slender beam with a length of 18 m , a constant Young's Modulus E=200 GPa , Poisson Ratio of 0.3, and constant square cross-sectional area of 25cm25cm. The beam is clamped at its right edge and subject to a distributed downward loading which varies linearly from 0kNm at its left edge to 1kNm at 6 m from its the left edge as well as an upward point force of 7 kN at 6 m from its right clamped edge.
(a) Determine the distribution of the internal bending moment in this beam.
(b) Determine the maximum shear strain xz in the cross-section at 2 m from the right edge.
