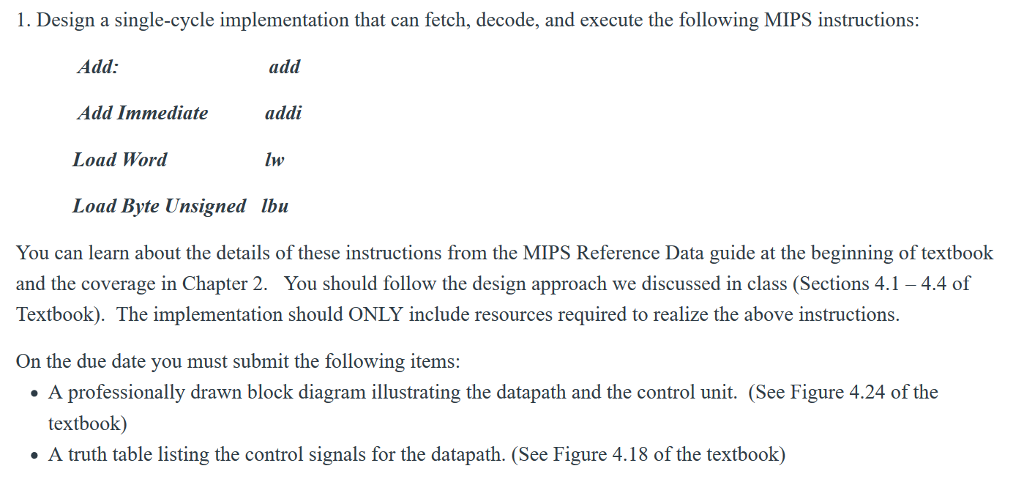

1. Design a single-cycle implementation that can fetch, decode, and execute the following MIPS instructions:

Add: add

Add Immediate addi

Load Word lw

Load Byte Unsigned lbu

You can learn about the details of these instructions from the MIPS Reference Data guide at the beginning of textbook and the coverage in Chapter 2. You should follow the design approach we discussed in class (Sections 4.1 4.4 of Textbook). The implementation should ONLY include resources required to realize the above instructions.

On the due date you must submit the following items:

A professionally drawn block diagram illustrating the datapath and the control unit. (See Figure 4.24 of the textbook)

A truth table listing the control signals for the datapath. (See Figure 4.18 of the textbook)

1. Design a single-cycle implementation that can fetch, decode, and execute the following MIPS instructions: Add: Add Immediateaddi Load Word Load Byte Unsigned Ibu add Iw You can learn about the details of these instructions from the MIPS Reference Data guide at the beginning of textbook and the coverage in Chapter 2. You should follow the design approach we discussed in class (Sections 4.1-4.4 of Textbook). The implementation should ONLY include resources required to realize the above instructions. On the due date you must submit the following items: A professionally drawn block diagram illustrating the datapath and the control unit. (See Figure 4.24 of the textbook) A truth table listing the control signals for the datapath. (See Figure 4.18 of the textbook) 1. Design a single-cycle implementation that can fetch, decode, and execute the following MIPS instructions: Add: Add Immediateaddi Load Word Load Byte Unsigned Ibu add Iw You can learn about the details of these instructions from the MIPS Reference Data guide at the beginning of textbook and the coverage in Chapter 2. You should follow the design approach we discussed in class (Sections 4.1-4.4 of Textbook). The implementation should ONLY include resources required to realize the above instructions. On the due date you must submit the following items: A professionally drawn block diagram illustrating the datapath and the control unit. (See Figure 4.24 of the textbook) A truth table listing the control signals for the datapath. (See Figure 4.18 of the textbook)
