Question: 1 . Determine the force in member ( C D ) . 1 4 1 lb 5 5 0 lb 7 0 0

1.

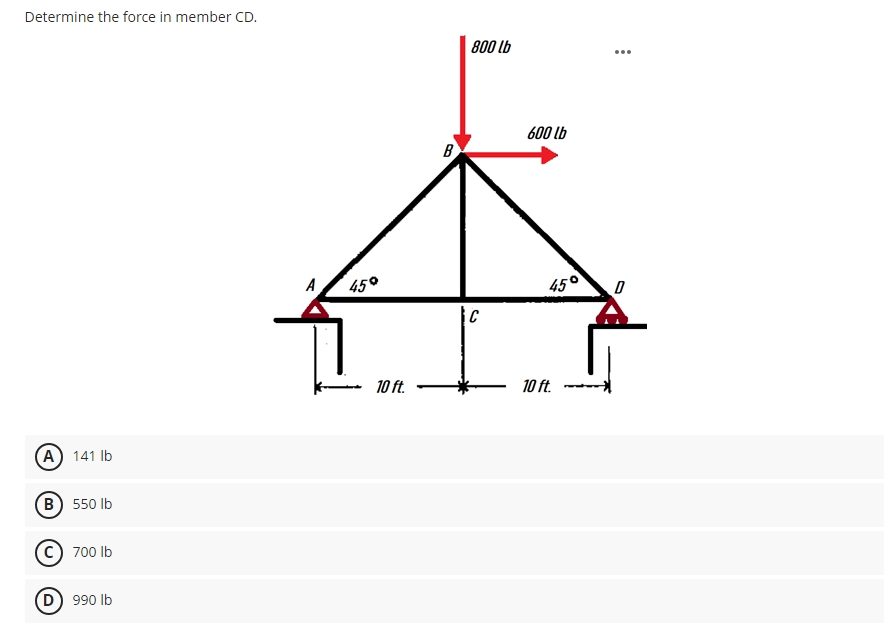

Determine the force in member \( C D \).
141 lb
550 lb
700 lb
990 lb
2.
Determine the force in member AC.
141 lb
550 lb
700 lb
990 lb
1 . Determine the force in member \ ( C D \ ) . 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
